The recommended PCB layout for the AD9237BCPZRL7-40 can be found in the AD9237 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9237 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
To optimize the AD9237BCPZRL7-40's performance, it's essential to understand the specific requirements of your application. Factors such as input signal frequency, amplitude, and impedance, as well as the desired SNR, SFDR, and power consumption, will influence the optimal configuration. Analog Devices provides a range of application notes, design tools, and simulation models to help engineers optimize the AD9237BCPZRL7-40 for their specific use case.
The AD9237BCPZRL7-40 can operate with clock frequencies up to 640 MHz, but the maximum clock frequency may be limited by the specific application and PCB layout. It's essential to ensure that the clock signal meets the recommended specifications for amplitude, jitter, and rise/fall times to maintain optimal performance.
The AD9237BCPZRL7-40's digital output data is provided in a 12-bit, 1.8 V CMOS format. To handle this data, engineers can use a range of digital signal processing techniques, such as filtering, decimation, and formatting, to extract the desired information. Analog Devices provides a range of digital signal processing tools and IP blocks to help engineers develop custom solutions for their specific application.
The AD9237BCPZRL7-40's power consumption is typically around 330 mW at 640 MSPS, but this can vary depending on the specific application and operating conditions. To minimize power consumption, engineers can use techniques such as power scaling, dynamic voltage and frequency scaling, and clock gating, as well as optimizing the PCB layout and thermal management to reduce power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD9237BCPZRL7-40 Overview

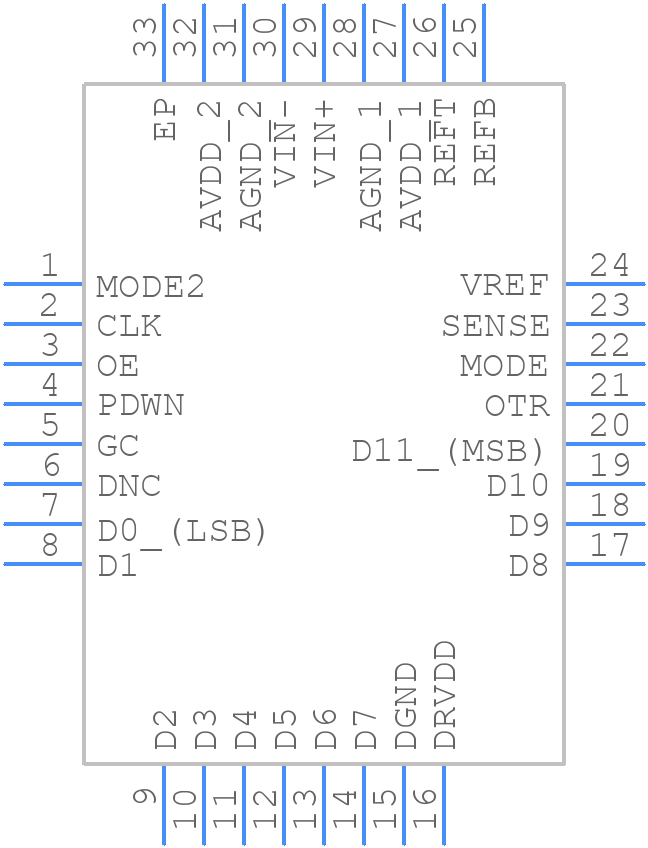

Use the download button to access the AD9237BCPZRL7-40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD923,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
