AD9245BCPZRL7-80 - Analog Devices

Description: 1-Channel Single ADC Pipelined 80Msps 14-bit Parallel 32-Pin LFCSP EP T/R

Download AD9245BCPZRL7-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

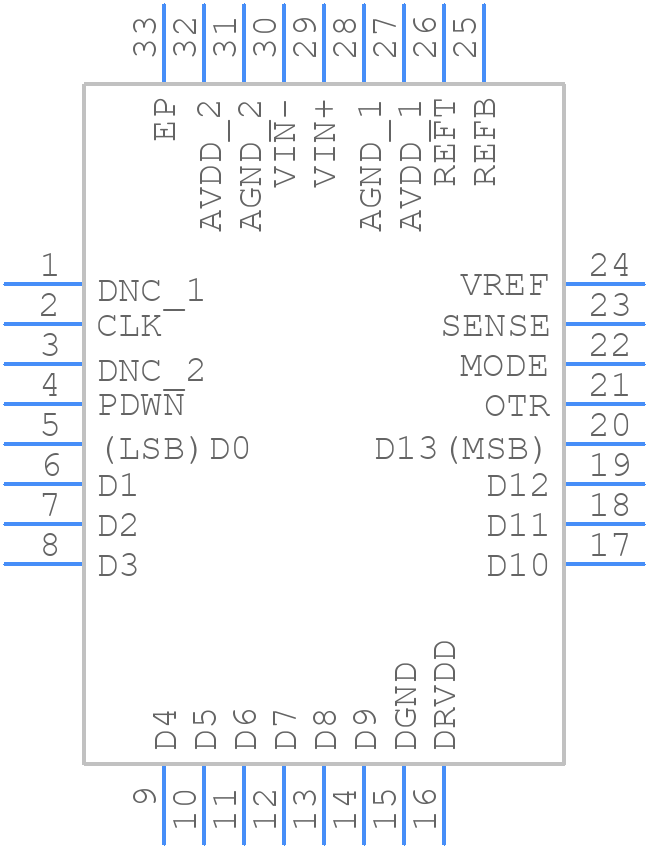

Symbol
AD9245BCPZRL7-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9245BCPZRL7-80 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7
click to zoom
3D Models
AD9245BCPZRL7-80 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7
click to zoom

AD9245BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9245BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    ROHS COMPLIANT, EXPOSED PAD, MO-220-VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0314%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD9245BCPZRL7-80 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9245BCPZRL7-80 can be found in the AD9245 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • To optimize the performance of the AD9245BCPZRL7-80, it's essential to carefully consider the analog input signal chain, including the signal source, amplifiers, and filters. Analog Devices provides application notes and design tools, such as the ADIsimADC simulation tool, to help engineers optimize their design and achieve the best possible performance.
  • The maximum clock frequency that can be used with the AD9245BCPZRL7-80 is 80 MSPS, as indicated by the '-80' suffix in the part number. However, the actual clock frequency used in a specific application may be limited by the system's overall signal chain and the desired performance characteristics.
  • The AD9245BCPZRL7-80 outputs 14-bit digital data in a CMOS-compatible format. Engineers can use a variety of methods to handle the digital output data, including using an FPGA or ASIC to process the data, or connecting the AD9245BCPZRL7-80 to a microcontroller or DSP for further processing and analysis.
  • The power consumption of the AD9245BCPZRL7-80 varies depending on the operating conditions, but typical power consumption is around 350 mW. To minimize power consumption, engineers can use power-down modes, reduce the clock frequency, and optimize the analog input signal chain to reduce the power required to drive the ADC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9245BCPZRL7-80 Overview

Use the download button to access the AD9245BCPZRL7-80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD924, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
