AD9250BCPZ-250 - Analog Devices

Description: ANALOG DEVICES - AD9250BCPZ-250 - ADC, DUAL, 14BIT, 250MSPS, SPI, LFCSP-48

Download AD9250BCPZ-250 Model

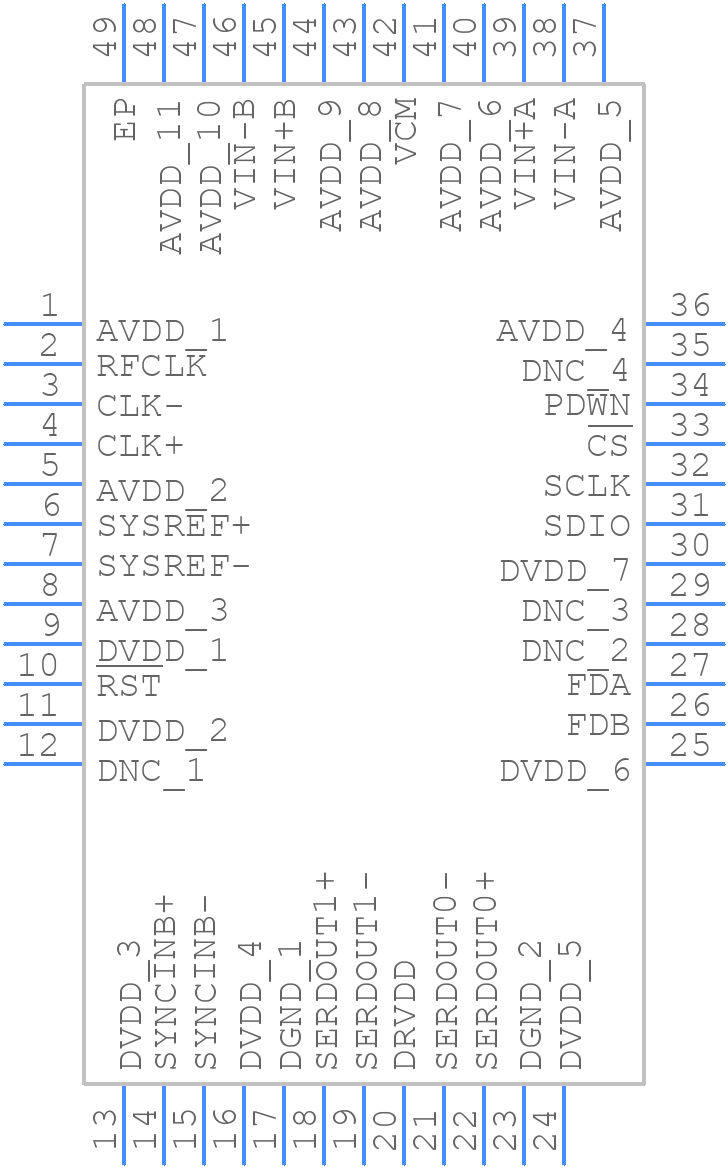

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD9250BCPZ-250 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead Lead Frame Chip Scale Package [LFCSP] 7 mm × 7 mm Body and 0.75 mm Package Height (CP-48-13)-1
click to zoom
3D Models
AD9250BCPZ-250 - Analog Devices  - 3D model - Quad Flat No-Lead - 48-Lead Lead Frame Chip Scale Package [LFCSP] 7 mm × 7 mm Body and 0.75 mm Package Height (CP-48-13)-1
click to zoom

AD9250BCPZ-250 Details

  • Manufacturer Part Number:

    AD9250BCPZ-250

  • Source Url Status Check Date:

    2013-05-01 14:56:30.233

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.75 V

  • Analog Input Voltage-Min:

    -1.75 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0214%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    250 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9250BCPZ-250 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize the performance of the AD9250, ensure that the analog input signal is properly terminated, use a low-noise clock source, and optimize the analog and digital supply voltages. Additionally, use the recommended layout and decoupling techniques to minimize noise and interference.
  • The maximum allowable input frequency for the AD9250 is 100 MHz, but it depends on the specific application and the desired performance. It's recommended to consult the datasheet and application notes for more information.
  • The AD9250 can be interfaced with a FPGA or ASIC using a parallel or serial interface. The specific interface depends on the device's interface mode, which can be configured through the SPI port. Consult the datasheet and application notes for more information on interface modes and configuration.
  • The typical power consumption of the AD9250 is around 350 mW, but it depends on the specific operating conditions, such as the sampling rate, input frequency, and supply voltages. Consult the datasheet for more information on power consumption.
