AD9255BCPZRL7-80 - Analog Devices

Description: Analog-to-Digital Converter

Download AD9255BCPZRL7-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

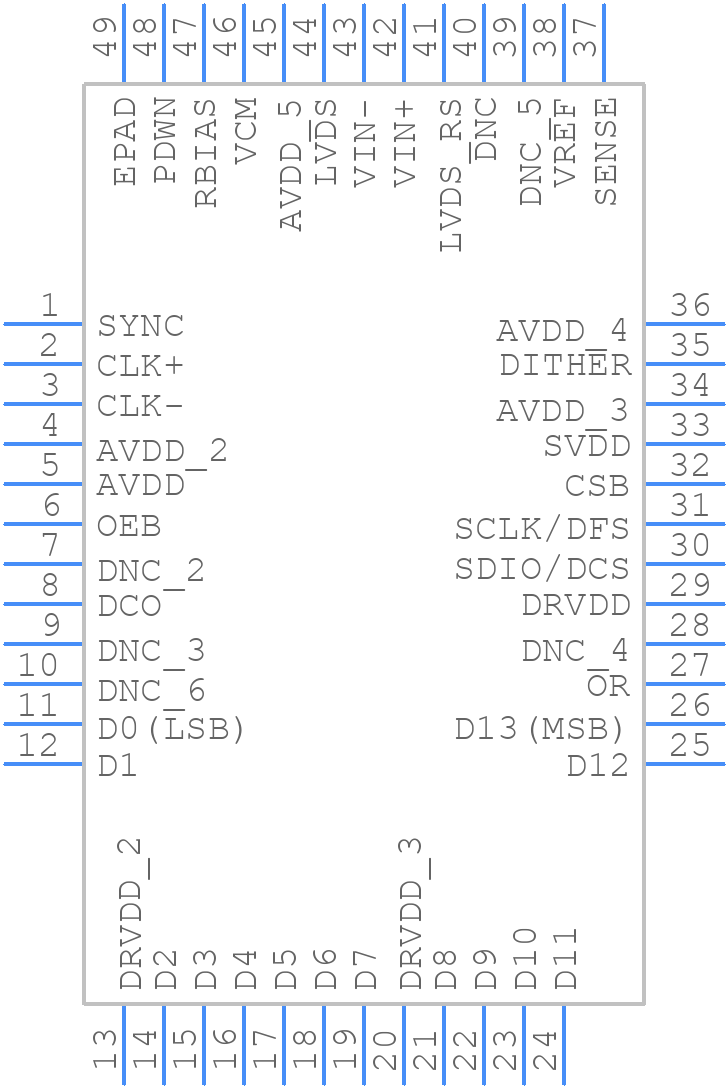

AD9255BCPZRL7-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9255BCPZRL7-80 - Analog Devices PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
AD9255BCPZRL7-80 - Analog Devices - 3D model - Other - QFN50P700X700X100-49N
click to zoom

AD9255BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9255BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-9

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.0125 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0055%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9255BCPZRL7-80 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9255BCPZRL7-80 can be found in the AD9255 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document that provides general guidelines for high-speed ADC layout.
  • To optimize the performance of the AD9255BCPZRL7-80, it is recommended to follow the guidelines provided in the datasheet and application notes. Additionally, Analog Devices provides a range of tools and resources, including simulation models, evaluation boards, and software development kits, to help engineers optimize the performance of the AD9255BCPZRL7-80 in their specific application.
  • The maximum clock frequency that can be used with the AD9255BCPZRL7-80 is 80 MSPS, as indicated by the '-80' suffix in the part number. However, the actual clock frequency that can be achieved may be limited by the specific application and system requirements.
  • The AD9255BCPZRL7-80 outputs digital data in a CMOS-compatible format. The digital output data can be handled using a range of methods, including using a FPGA or ASIC to process the data, or using a microcontroller or DSP to interface with the ADC. Analog Devices provides a range of software development kits and evaluation boards to help engineers handle the digital output data from the AD9255BCPZRL7-80.
  • The power consumption of the AD9255BCPZRL7-80 is typically around 350 mW at 80 MSPS, with a supply voltage of 1.8 V. However, the actual power consumption may vary depending on the specific application and system requirements.
