AD9265BCPZRL7-80 - Analog Devices

Description: Analog-to-Digital Converter

Download AD9265BCPZRL7-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

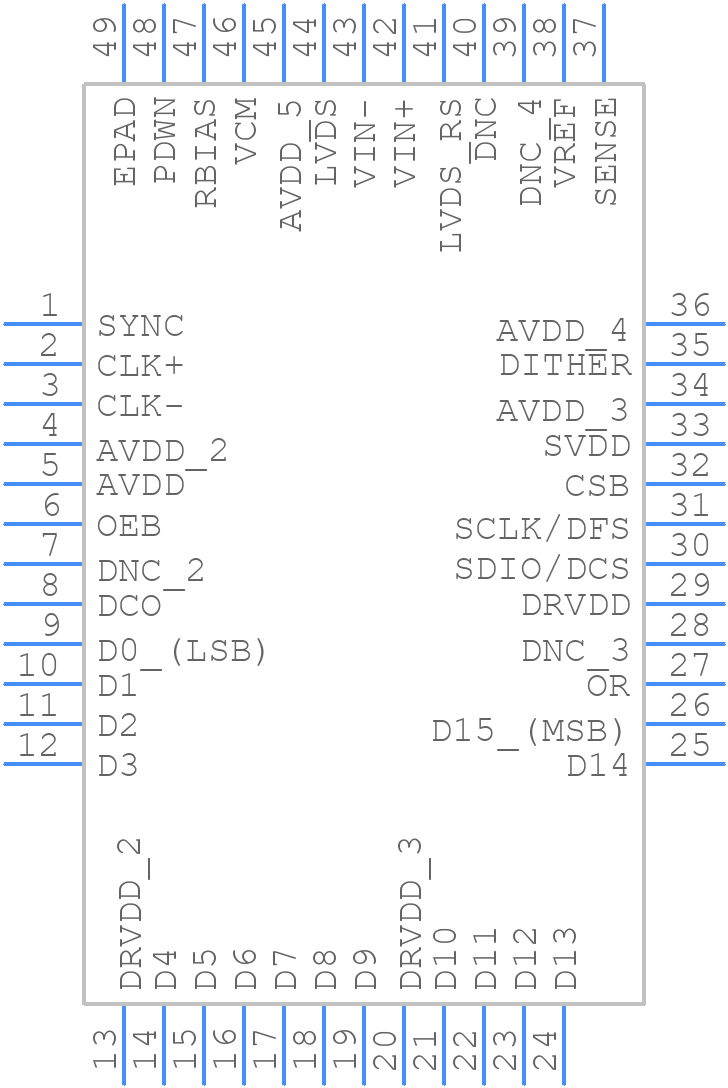

AD9265BCPZRL7-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9265BCPZRL7-80 - Analog Devices PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
AD9265BCPZRL7-80 - Analog Devices - 3D model - Other - QFN50P700X700X100-49N
click to zoom

AD9265BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9265BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.A.5.A.5

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.1 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.003814%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    131 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9265BCPZRL7-80 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9265BCPZRL7-80 can be found in the AD9265 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the performance of the AD9265BCPZRL7-80, it's essential to follow the recommended operating conditions, such as power supply voltage, clock frequency, and input signal amplitude. Additionally, Analog Devices provides a range of application notes and technical articles that provide guidance on optimizing performance in specific applications, such as radar, lidar, and software-defined radio.
  • The maximum clock frequency that can be used with the AD9265BCPZRL7-80 is 80 MSPS, as indicated in the part number. However, the actual clock frequency used may be limited by the specific application requirements, such as the Nyquist frequency of the input signal, and the desired signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR).
  • The AD9265BCPZRL7-80's internal registers can be programmed using a serial interface, such as SPI or I2C. Analog Devices provides a detailed register map and programming guide in the datasheet, as well as software development kits (SDKs) and evaluation software that simplify the programming process.
  • The power consumption of the AD9265BCPZRL7-80 depends on the specific operating conditions, such as the clock frequency, input signal amplitude, and power supply voltage. According to the datasheet, the typical power consumption is around 330 mW at 80 MSPS, but this can vary depending on the specific application requirements. It's essential to consult the datasheet and perform power consumption calculations to ensure that the device meets the power budget of the system.
