AD9266BCPZRL7-40 - Analog Devices

Description: Analog-to-Digital Converter

Download AD9266BCPZRL7-40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

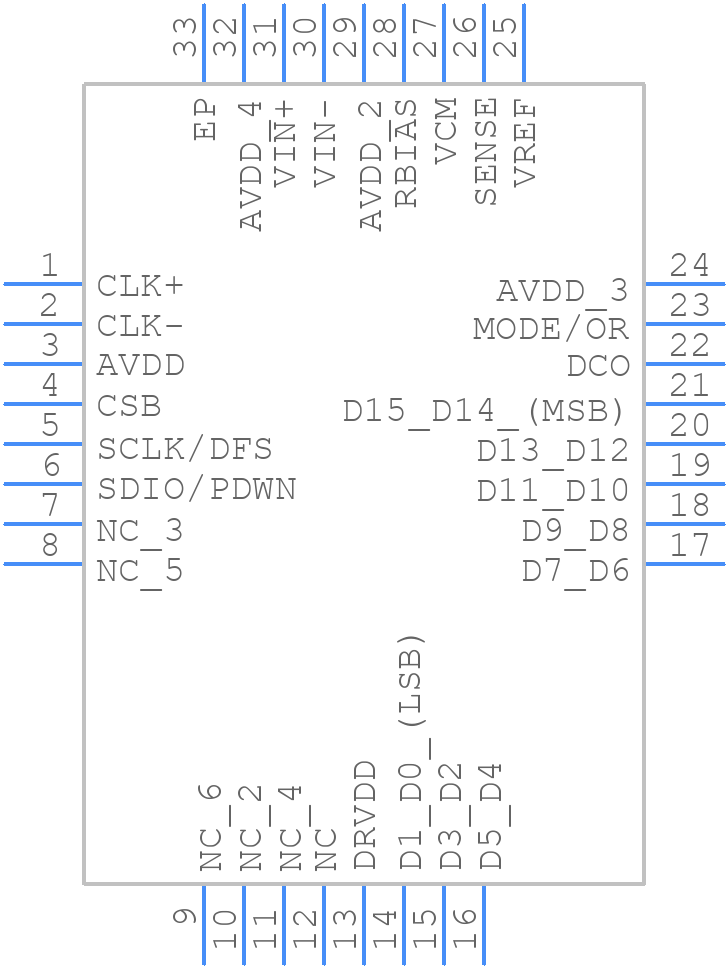

AD9266BCPZRL7-40 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9266BCPZRL7-40 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
AD9266BCPZRL7-40 - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

AD9266BCPZRL7-40 Details

  • Manufacturer Part Number:

    AD9266BCPZRL7-40

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, LEAD FREE, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.008%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9266BCPZRL7-40 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9266BCPZRL7-40 can be found in the AD9266 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document that provides general guidelines for high-speed analog-to-digital converter (ADC) layout.
  • To optimize the performance of the AD9266BCPZRL7-40, it is recommended to follow the guidelines provided in the datasheet and application notes. Additionally, Analog Devices provides a range of tools and resources, including simulation models, evaluation boards, and software development kits (SDKs), to help engineers optimize the performance of the AD9266BCPZRL7-40 in their specific application.
  • The maximum clock frequency that can be used with the AD9266BCPZRL7-40 is 40 MSPS, as indicated by the '-40' in the part number. However, the actual clock frequency that can be achieved may be limited by the specific application and system design.
  • The AD9266BCPZRL7-40 can be interfaced with a FPGA or ASIC using a parallel or serial interface. The datasheet provides detailed information on the interface timing and protocol. Additionally, Analog Devices provides FPGA and ASIC interface guides and reference designs to help engineers implement the interface.
  • The power consumption of the AD9266BCPZRL7-40 depends on the specific operating conditions and application. The datasheet provides detailed information on the power consumption of the device, including the typical current consumption and power dissipation. In general, the AD9266BCPZRL7-40 has a low power consumption of around 350 mW at 40 MSPS.
