AD9283BRSZ-RL50 - Analog Devices

Description: 1-Channel Single ADC Pipelined 50Msps 8-bit Parallel 20-Pin SSOP T/R

Download AD9283BRSZ-RL50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

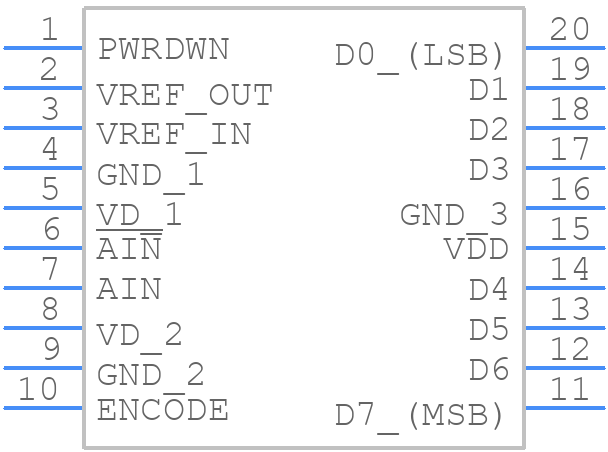

AD9283BRSZ-RL50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9283BRSZ-RL50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package (SSOP) (RS-20)
click to zoom
3D Models
AD9283BRSZ-RL50 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package (SSOP) (RS-20)
click to zoom

AD9283BRSZ-RL50 Details

  • Manufacturer Part Number:

    AD9283BRSZ-RL50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.512 V

  • Analog Input Voltage-Min:

    -0.512 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    50 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9283BRSZ-RL50 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9283BRSZ-RL50 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the clock input, use a low-jitter clock source, and ensure the clock signal is properly terminated. The clock signal should be a clean, low-noise signal with a frequency of 100 MHz to 200 MHz. It's also recommended to use a clock signal with a 50% duty cycle.
  • The recommended power-up sequence for the AD9283BRSZ-RL50 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to prevent latch-up and ensures proper device operation.
  • The AD9283BRSZ-RL50 outputs 14-bit data in a CMOS-compatible format. The output data should be captured using a FIFO or a fast ADC interface, and then processed using a digital signal processor or an FPGA. It's recommended to use a data capture board or a development platform to simplify the data capture process.
  • The AD9283BRSZ-RL50 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9283BRSZ-RL50 Overview

Use the download button to access the AD9283BRSZ-RL50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD928, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
