AD9288BSTZRL-40 - Analog Devices

Description: 2-Channel Dual ADC Pipelined 40Msps 8-bit Parallel 48-Pin LQFP T/R

Download AD9288BSTZRL-40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

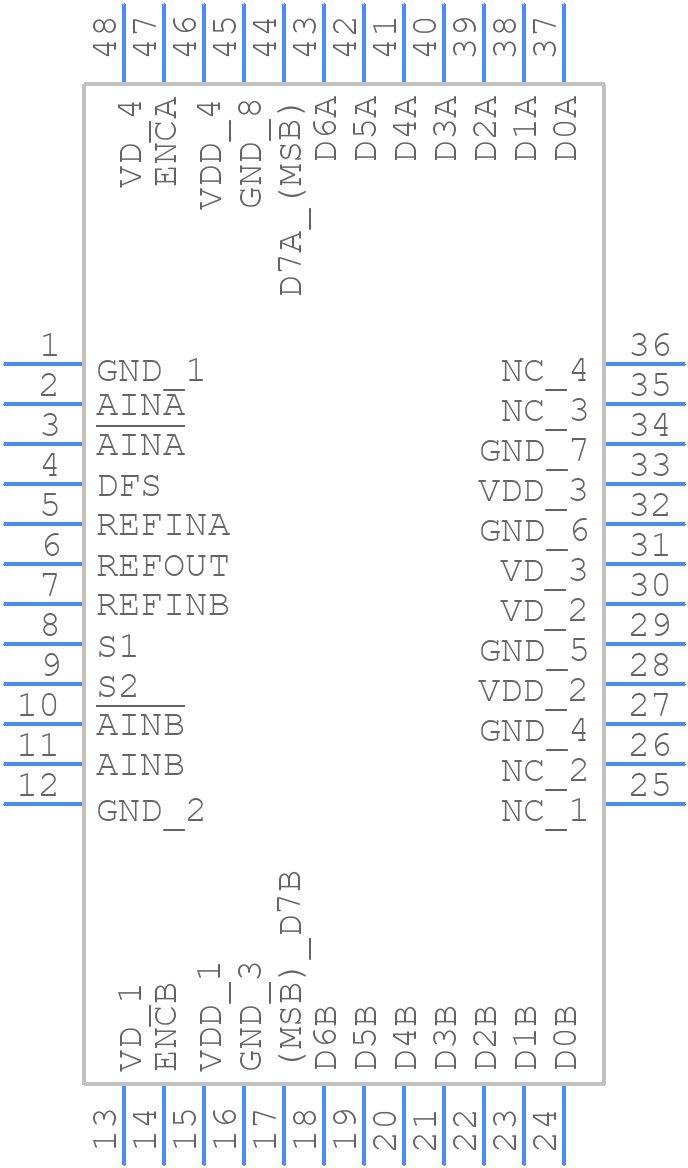

AD9288BSTZRL-40 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9288BSTZRL-40 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)_1
click to zoom
3D Models
AD9288BSTZRL-40 - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)_1
click to zoom

AD9288BSTZRL-40 Details

  • Manufacturer Part Number:

    AD9288BSTZRL-40

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, LEAD FREE, PLASTIC, MO-026-BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.512 V

  • Analog Input Voltage-Min:

    -0.512 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.4883%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9288BSTZRL-40 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9288BSTZRL-40 can be found in the AD9288 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • To optimize the performance of the AD9288BSTZRL-40, it's essential to carefully consider the analog input signal, clocking, and digital output interface. Analog Devices provides application notes and design tools, such as the AD9288 Evaluation Board and the ADIsimADC simulation tool, to help engineers optimize their design. Additionally, consulting with Analog Devices' technical support team can provide valuable insights and guidance.
  • The AD9288BSTZRL-40 is specified to operate over a temperature range of -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and thermal management should be considered in the system design to ensure reliable operation.
  • Yes, the AD9288BSTZRL-40 can be used in multi-channel applications. The device's digital output interface is designed to support daisy-chaining, allowing multiple devices to be connected in a single data stream. However, it's essential to carefully consider the clocking and synchronization requirements for the specific application.
  • The typical power consumption of the AD9288BSTZRL-40 is around 330 mW at a supply voltage of 1.8 V and a clock frequency of 160 MHz. However, the actual power consumption may vary depending on the specific application, clock frequency, and operating conditions.
