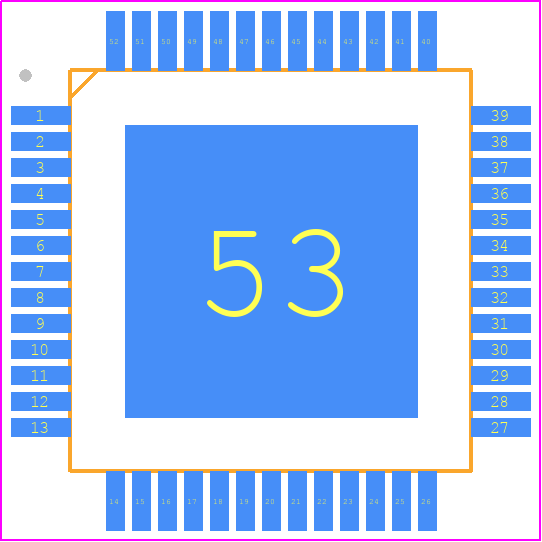

AD9432BSVZ-105 - Analog Devices

AD9432BSVZ-105 Details

• Manufacturer Part Number:

  AD9432BSVZ-105

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

• Package Description:

  TQFP-52

• Pin Count:

  52

• Manufacturer Package Code:

  SV-52-2

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  2 V

• Conversion Time-Max:

  0.0095 µs

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PQFP-G52

• JESD-609 Code:

  e3

• Length:

  10 mm

• Linearity Error-Max (EL):

  0.0366%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  52

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  2'S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTQFP

• Package Equivalence Code:

  TQFP52,.47SQ,25

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  105 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm
