AD9480ASUZ-250 footprint, schematic symbol and 3D model by Analog Devices

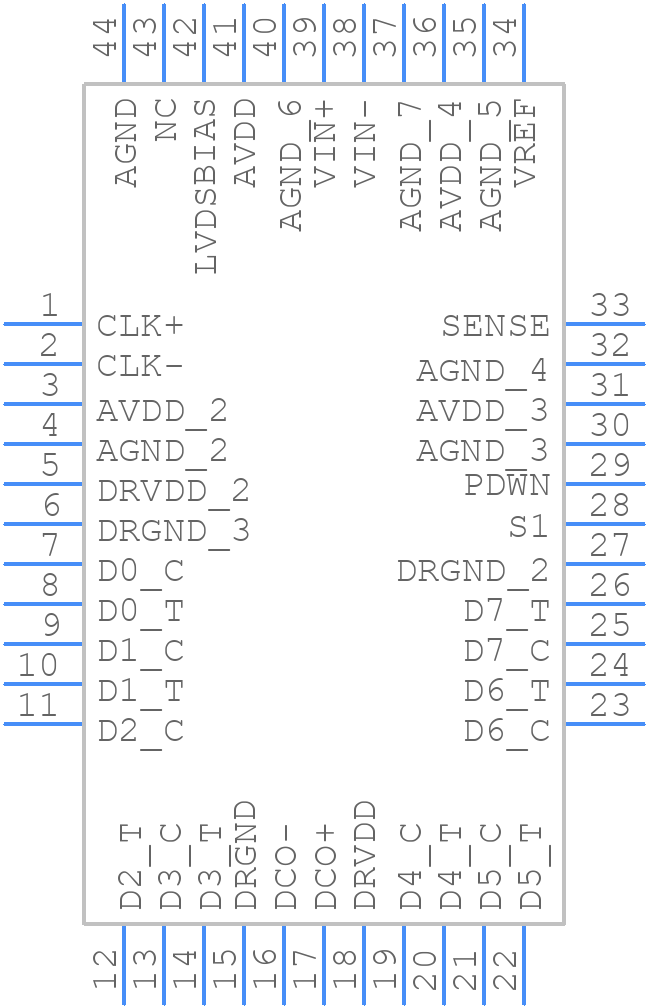

Symbol

click to zoom

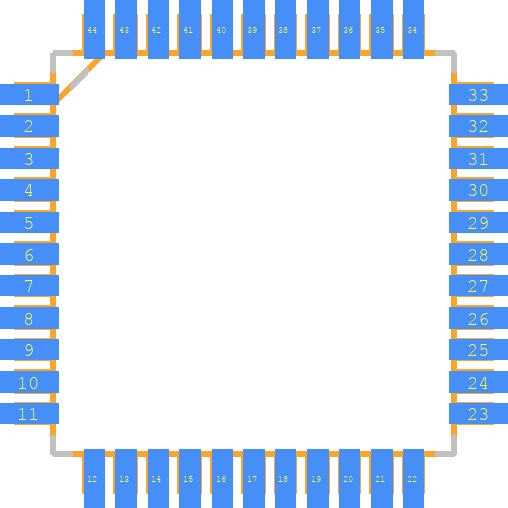

PCB Footprints

AD9480ASUZ-250 - Analog Devices PCB footprint - Other - Other - QFP80P1200X1200X120-44N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD9480ASUZ-250
Part Number AD9480ASUZ-250
Manufacturer Analog Devices
Pin Count 44
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP80P1200X1200X120-44N
Released Date Jan 10, 2017
Last Modified Date May 7, 2025 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)

AD9480ASUZ-250 Details

Manufacturer Part Number:
AD9480ASUZ-250
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFP
Package Description:
LEAD FREE, PLASTIC, MS-026-ACB, TQFP-44
Pin Count:
44
Manufacturer Package Code:
SU-44
Country Of Origin:
Philippines
ECCN Code:
3A991.C.1
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
2.1 V
Analog Input Voltage-Min:
1.7 V
Converter Type:
ADC, PROPRIETARY METHOD
JESD-30 Code:
S-PQFP-G44
JESD-609 Code:
e3
Length:
10 mm
Linearity Error-Max (EL):
0.3516%
Moisture Sensitivity Level:
3
Number of Analog In Channels:
1
Number of Bits:
8
Number of Functions:
1
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
BINARY, 2S COMPLEMENT BINARY
Output Format:
PARALLEL, WORD
Package Body Material:
PLASTIC/EPOXY
Package Code:
TQFP
Package Equivalence Code:
TQFP44,.47SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
250 MHz
Sample and Hold / Track and Hold:
TRACK
Seated Height-Max:
1.2 mm
Supply Current-Max:
156 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Width:
10 mm

AD9480ASUZ-250 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and direct.
Use a low-jitter clock source (<100 ps RMS) and ensure the clock signal is properly terminated. Use a clock signal with a 50% duty cycle and a frequency that is an integer multiple of the ADC sampling frequency. Also, use a clock signal with a fast rise and fall time (<1 ns) to minimize jitter.
Power up the device in the following sequence: AVDD, DVDD, and then CLKIN. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
Use a FIFO or a buffer to handle the output data, as the ADC outputs data at a high rate. Ensure that the receiving device can handle the data rate and format. Use error detection and correction mechanisms, such as CRC or checksum, to ensure data integrity.
Perform a full-scale calibration after power-up and after any changes to the device configuration. Use the internal calibration mode and follow the recommended calibration sequence outlined in the datasheet.
