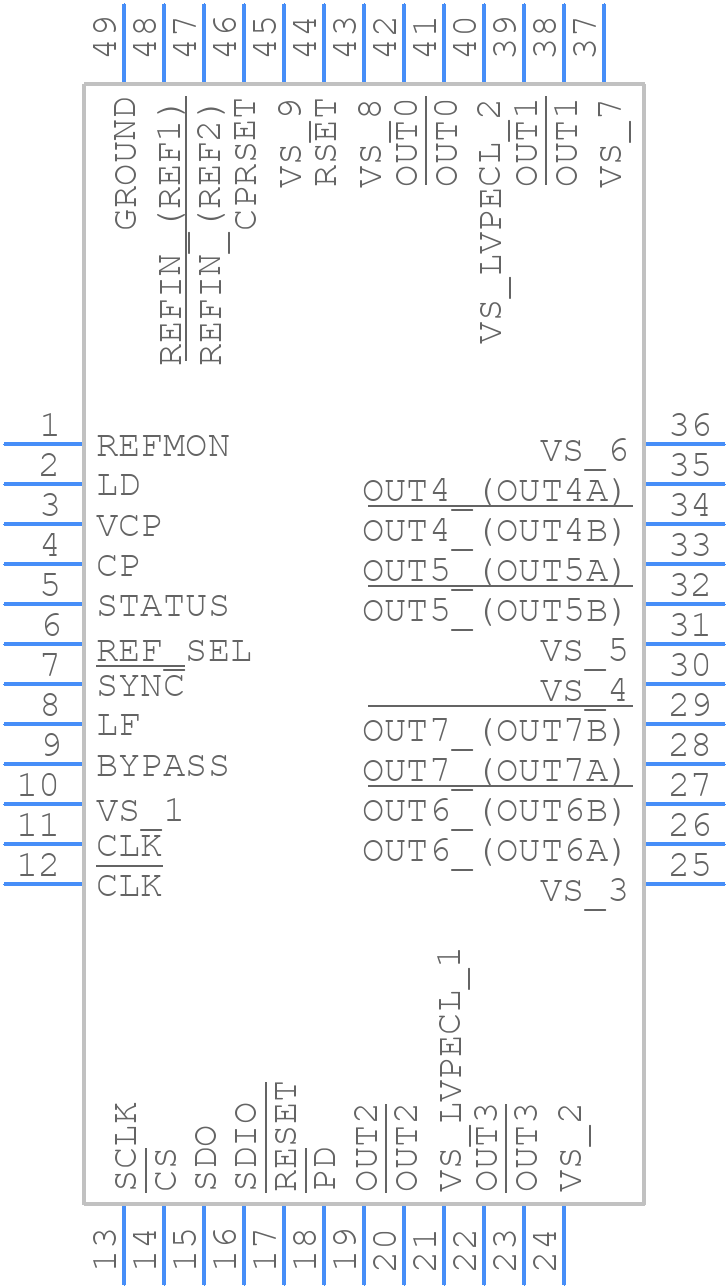

AD9517-3ABCPZ - Analog Devices

AD9517-3ABCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9517-3ABCPZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-configuration for the power supply. Also, use a common mode filter and a ferrite bead to filter the power supply.
• How do I optimize the loop filter design for the AD9517-3ABCPZ?
  Use the ADIsimPLL tool to design the loop filter. The tool provides a graphical interface to design and optimize the loop filter based on the specific application requirements. The tool also provides a bill of materials and a schematic diagram.
• What is the maximum clock frequency that the AD9517-3ABCPZ can support?
  The AD9517-3ABCPZ can support clock frequencies up to 2.4 GHz. However, the maximum frequency is dependent on the specific application and the quality of the clock signal.
• How do I synchronize multiple AD9517-3ABCPZ devices in a system?
  Use the SYNC_IN and SYNC_OUT pins to synchronize multiple devices. The SYNC_IN pin is used to input a synchronization signal, and the SYNC_OUT pin is used to output a synchronized clock signal. The devices can be cascaded to synchronize multiple devices.
• What is the recommended power-up sequence for the AD9517-3ABCPZ?
  The recommended power-up sequence is to power up the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
