AD9524BCPZ-REEL7 - Analog Devices

Description: Low Jitter Clock Generator

Download AD9524BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

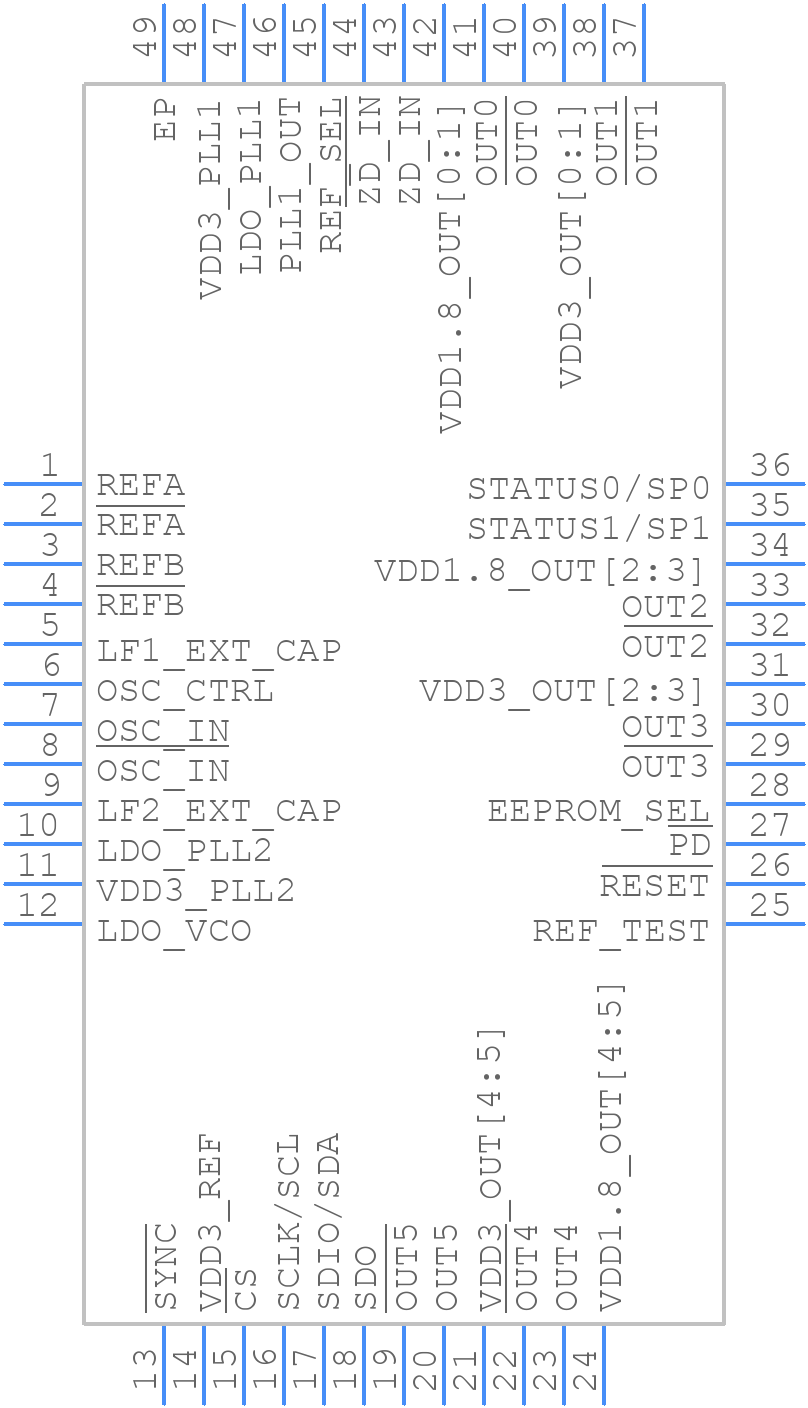

AD9524BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9524BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_VQ] (CP-48-1)
click to zoom
3D Models
AD9524BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_VQ] (CP-48-1)
click to zoom

AD9524BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD9524BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    1000 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    400 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    77.7 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

AD9524BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9524BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize power supply decoupling for the AD9524BCPZ-REEL7, use a combination of ceramic and electrolytic capacitors with different values (e.g., 10uF, 100nF, and 10nF) placed close to the device's power pins. This helps to filter out noise and ensure a stable power supply.
  • The AD9524BCPZ-REEL7 can handle clock frequencies up to 3.2 GHz. However, the maximum frequency may vary depending on the specific application and the quality of the clock signal.
  • To configure the AD9524BCPZ-REEL7 for a specific clock output frequency, use the device's internal PLL and divider circuits. The PLL can be programmed using the SPI interface, and the divider circuits can be configured using the device's control pins. Refer to the datasheet for specific programming instructions.
  • The typical power consumption of the AD9524BCPZ-REEL7 is around 1.2W, but this can vary depending on the specific application, clock frequency, and output load. Refer to the datasheet for more information on power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9524BCPZ-REEL7 Overview

Use the download button to access the AD9524BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD952, or try a keyword search, such as Clock Generators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
