AD9554BCPZ-REEL - Analog Devices

Description: Quad PLL, Quad Input, 8-output Multiservice Line Card Adaptive Clock Translator

Download AD9554BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9554BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

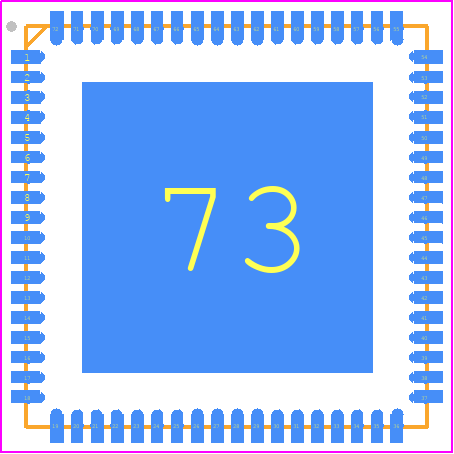

AD9554BCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
click to zoom
3D Models
AD9554BCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
click to zoom

AD9554BCPZ-REEL Details

  • Manufacturer Part Number:

    AD9554BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD9554BCPZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the AD9554 evaluation board documentation, which can be found on the product page. It's essential to follow this layout to ensure proper operation and minimize noise.
  • The AD9554BCPZ-REEL can be configured using the SPI interface. Analog Devices provides a software tool, ADI Clock Design Wizard, which can be used to generate the required SPI commands for a specific clock frequency. The tool can be downloaded from the Analog Devices website.
  • The AD9554BCPZ-REEL can support clock frequencies up to 3.2 GHz. However, the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • To ensure low jitter performance, it's essential to follow proper PCB layout and design guidelines, use a low-noise power supply, and minimize noise coupling. Additionally, the AD9554BCPZ-REEL has a built-in jitter attenuator that can be enabled to reduce jitter. Consult the datasheet and application notes for more information.
  • Yes, the AD9554BCPZ-REEL can be used in a redundant clocking system. It has a built-in clock switch that allows for automatic or manual switching between two clock inputs. This feature can be used to implement a redundant clocking system, ensuring that the system remains operational even in the event of a clock failure.
