AD9600ABCPZ-105 - Analog Devices

Description: 10-Bit, 105 MSPS/125 MSPS/150 MSPS, 1.8 V Dual Analog-to-Digital Converter

Download AD9600ABCPZ-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9600ABCPZ-105 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

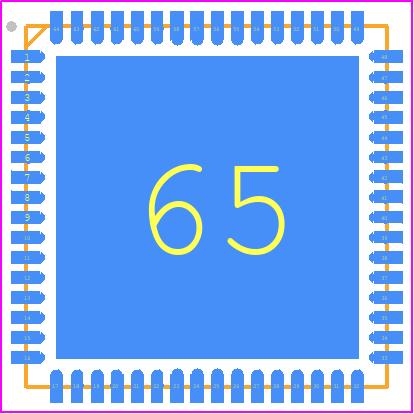

AD9600ABCPZ-105 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-64-6)
click to zoom
3D Models
AD9600ABCPZ-105 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-64-6)
click to zoom

AD9600ABCPZ-105 Details

  • Manufacturer Part Number:

    AD9600ABCPZ-105

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-6

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.009 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0293%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    2

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    105 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9600ABCPZ-105 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9600's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout, but it's also recommended to consult with Analog Devices' application notes and PCB layout guidelines for more detailed information.
  • The AD9600 has a flexible clocking and synchronization scheme, but it requires careful planning to optimize its performance. Engineers should consult the datasheet and application notes to understand the clocking and synchronization options, and consider factors such as clock jitter, phase noise, and synchronization modes. It's also recommended to consult with Analog Devices' technical support for specific guidance.
  • The AD9600 can achieve a maximum data rate of 250 MSPS, but this depends on the specific configuration and application. Engineers should consult the datasheet and application notes to understand the data rate limitations and optimize their design accordingly.
  • The AD9600 has a relatively high power consumption, especially at high data rates. Engineers should consider power consumption and thermal management in their design, using techniques such as power gating, clock scaling, and heat sinking to minimize power consumption and heat generation.
  • The AD9600 requires calibration to achieve optimal performance. Engineers should consult the datasheet and application notes for the recommended calibration procedure, which typically involves adjusting the ADC's offset, gain, and phase to optimize its performance.
