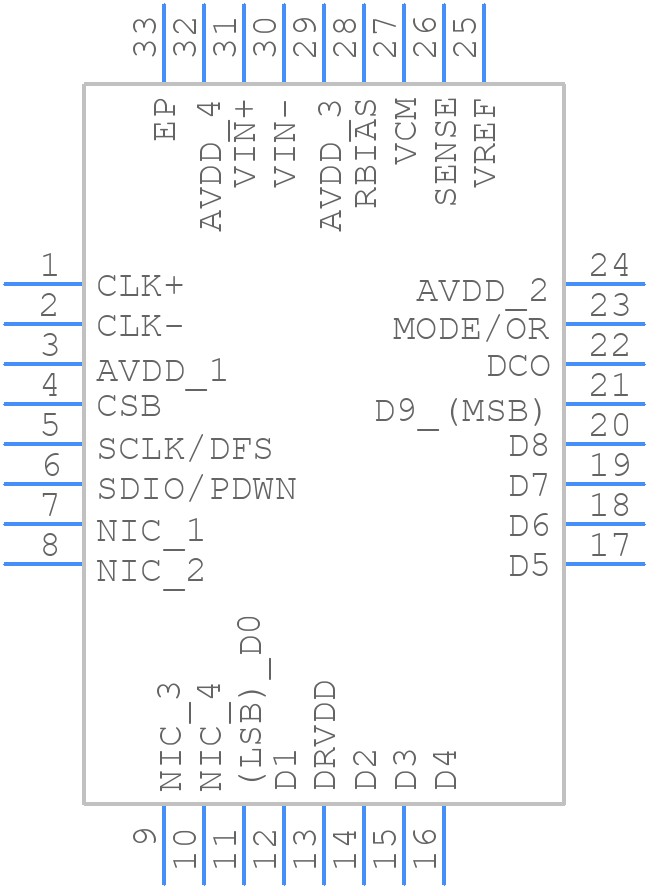

AD9609BCPZ-80 - Analog Devices

AD9609BCPZ-80 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9609BCPZ-80 to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter or a pi-filter to reduce noise and EMI.
• How do I optimize the clock input for the AD9609BCPZ-80 to achieve the best possible jitter performance?
  Use a high-quality clock source with a low jitter specification. Use a clock signal with a frequency that is a multiple of the ADC sampling frequency. Use a clock signal with a 50% duty cycle and a amplitude of 1.8V to 3.3V. Use a series resistor and capacitor to filter the clock signal and reduce jitter.
• What is the recommended power-up sequence for the AD9609BCPZ-80 to prevent damage or latch-up?
  Power up the digital power supply (DVDD) first, followed by the analog power supply (AVDD). Ensure that the digital power supply is stable before applying the analog power supply. Apply the clock signal after both power supplies are stable.
• How do I handle the output data from the AD9609BCPZ-80 to ensure data integrity and prevent errors?
  Use a FIFO or a buffer to handle the output data from the ADC. Use a data valid signal to ensure that the data is valid before processing it. Use a CRC or a checksum to detect errors in the data transmission.
• What is the recommended calibration procedure for the AD9609BCPZ-80 to ensure optimal performance?
  Perform a full-scale calibration after power-up. Use a known input signal to calibrate the ADC. Use the calibration registers to adjust the offset and gain of the ADC. Perform a calibration at multiple temperatures to ensure optimal performance over the entire operating temperature range.
