AD9625BBPZRL-2.5 - Analog Devices

Description: Analog to Digital Converters - ADC 12 Bit 2.5Gsps ADC operating +/-1.2 3V

Download AD9625BBPZRL-2.5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

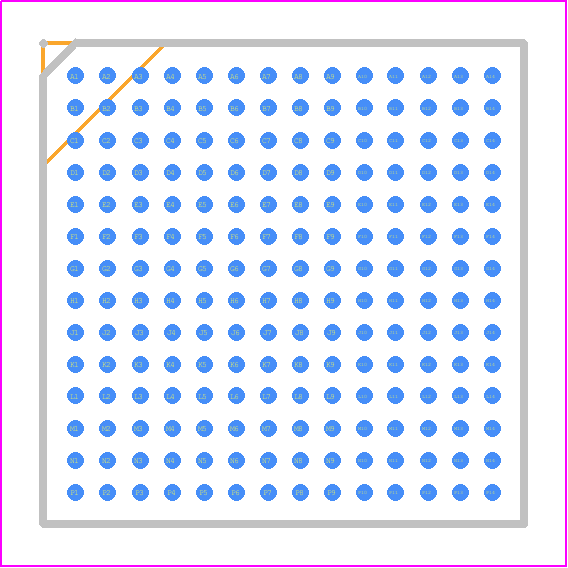

AD9625BBPZRL-2.5 - Analog Devices PCB footprint - BGA - BGA - BP-196-2
click to zoom
3D Models
AD9625BBPZRL-2.5 - Analog Devices  - 3D model - BGA - BP-196-2
click to zoom

AD9625BBPZRL-2.5 Details

  • Manufacturer Part Number:

    AD9625BBPZRL-2.5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MO-275GGAA-1, BGA-196

  • Pin Count:

    196

  • Manufacturer Package Code:

    BP-196-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.A.5.A.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.1 V

  • Analog Input Voltage-Min:

    -1.1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.0562%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Equivalence Code:

    BGA196,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Nom:

    1.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

AD9625BBPZRL-2.5 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9625BBPZRL-2.5 can be found in the AD9625 Evaluation Board documentation (UG-1014) and the AD9625 Layout Guidelines document (MT-093) available on the Analog Devices website. These resources provide detailed guidance on PCB layout, component placement, and routing to ensure optimal performance.
  • To optimize the clock input for the AD9625BBPZRL-2.5, use a high-quality clock source with low jitter and noise. The clock input should be driven differentially, and the clock signal should be terminated with a 100 ohm resistor. Additionally, the clock input should be decoupled with a 0.1 uF capacitor to reduce noise and jitter.
  • The AD9625BBPZRL-2.5 can achieve a maximum data rate of 2.5 GSPS (gigasamples per second) in DDR (double data rate) mode. However, the actual data rate may be limited by the system's clock frequency, signal integrity, and other factors.
  • The AD9625BBPZRL-2.5 has an internal calibration engine that can be used to calibrate the device. The calibration process involves setting the CAL_MODE pin high and then writing the calibration coefficients to the device's registers. The calibration coefficients can be generated using the AD9625 Evaluation Board software or calculated using the AD9625 datasheet equations.
  • The power consumption of the AD9625BBPZRL-2.5 depends on the operating mode and clock frequency. In typical operating conditions, the device consumes around 1.2 W at 2.5 GSPS. However, the actual power consumption may vary depending on the system's power supply, clock frequency, and other factors.
