AD9635BCPZ-80 - Analog Devices

Description: ANALOG DEVICES - AD9635BCPZ-80 - ADC, 12BIT, 80MSPS, LFCSP-32

Download AD9635BCPZ-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

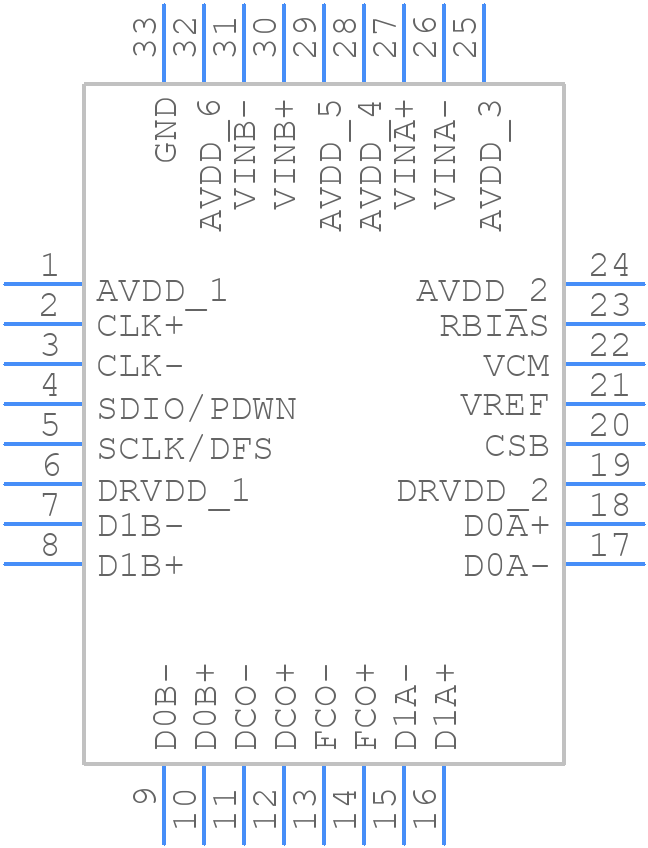

Symbol
AD9635BCPZ-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9635BCPZ-80 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD9635BCPZ-80-1
click to zoom
3D Models
AD9635BCPZ-80 - Analog Devices - 3D model - Quad Flat No-Lead - AD9635BCPZ-80-1
click to zoom

AD9635BCPZ-80 Details

  • Manufacturer Part Number:

    AD9635BCPZ-80

  • Source Url Status Check Date:

    2013-05-01 14:56:31.393

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.1 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0171%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9635BCPZ-80 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep analog and digital signals separate, and use shielding and filtering to minimize noise.
  • Optimize the ADC's performance by selecting the correct input range, setting the correct sampling rate, and using the internal calibration features. Additionally, consider using external filters or amplifiers to condition the input signal.
  • Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Operate the device within the recommended temperature range (-40°C to 85°C) and avoid overheating, which can affect performance and reliability.
  • Use a compatible digital interface standard (e.g., SPI, I2C, or parallel) and ensure proper signal termination, clock synchronization, and data formatting. Consider using a dedicated interface IC or a microcontroller with a built-in ADC interface to simplify the design.
  • Use proper shielding, filtering, and grounding techniques to minimize electromagnetic interference. Ensure that the device is placed in a shielded area, and use EMI filters or chokes to reduce radiation. Follow good PCB design practices, such as using a solid ground plane and minimizing signal loop areas.
