- Part Number AD9639BCPZ-170
- Manufacturer Analog Devices
- Pin Count 73
- Part Category Integrated Circuit
- Package Category Other

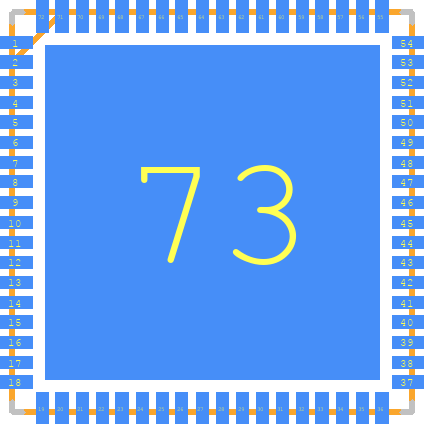

- Footprint Name Other - QFN50P1000X1000X100-73N
- Released Date Jan 11, 2017
- Last Modified Date Apr 23, 2025 11:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
AD9639BCPZ-170 Details
-
Manufacturer Part Number:
AD9639BCPZ-170
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Pin Count:
72
-
Manufacturer Package Code:
CP-72-3
-
Country Of Origin:
Singapore
-
ECCN Code:
3A991.C.2
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD9639BCPZ-170 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter and a ferrite bead to filter out high-frequency noise.
-
Use a low-jitter clock source (<100 ps) and a 50-ohm transmission line to drive the clock input. Ensure the clock signal is properly terminated and use a clock buffer if necessary. Avoid using a clock signal with a high harmonic content.
-
Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure that the analog supply is stable before applying the digital supply. Use a power-up sequence controller or a power management IC to ensure a controlled power-up sequence.
-
Use a heat sink with a thermal conductivity of at least 1 W/m-K. Ensure good airflow around the device and avoid blocking the airflow. Use thermal interface material (TIM) to improve the thermal conductivity between the device and the heat sink.
-
Use a TVS (transient voltage suppressor) diode or a ESD protection array at the input pins to protect against electrostatic discharge. Ensure the ESD protection device is rated for the maximum voltage and current of the input signal.
