- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9644CCPZ-80
- Part Number AD9644CCPZ-80
- Manufacturer Analog Devices
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P700X700X100-49N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9644CCPZ-80 Details
-
Manufacturer Part Number:
AD9644CCPZ-80
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Pin Count:
48
-
Manufacturer Package Code:
CP-48-9
-
Country Of Origin:
Singapore
-
ECCN Code:
3A991.C.3
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD9644CCPZ-80 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the AD9644CCPZ-80 can be found in the AD9644 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9644 datasheet, which highlights key considerations for signal routing, grounding, and decoupling.
-
To optimize the AD9644CCPZ-80's performance, it's essential to understand the specific requirements of your application, such as signal frequency, amplitude, and noise tolerance. Analog Devices provides a range of application notes and design tools, including the AD9644 Evaluation Board and the ADIsimADC simulation tool, which can help you optimize the ADC's performance for your specific use case.
-
The maximum clock frequency that can be used with the AD9644CCPZ-80 is 80 MSPS, as indicated in the part number. However, the actual clock frequency that can be achieved may be limited by the specific application, PCB layout, and clock source quality. It's essential to consult the AD9644 datasheet and application notes for guidance on clocking and synchronization.
-
The AD9644CCPZ-80's digital output data is provided in a 12-bit, 1.8V CMOS format. To handle this data, you'll need to ensure that your digital receiver is compatible with the ADC's output format and can handle the data rate. You may also need to implement data buffering, formatting, and processing to extract the desired information from the ADC output.
-
The power consumption of the AD9644CCPZ-80 varies depending on the operating mode and clock frequency. According to the datasheet, the typical power consumption is around 135 mW at 80 MSPS. To minimize power consumption, you can consider using the ADC's power-down modes, reducing the clock frequency, and optimizing the PCB layout to minimize power dissipation.
Trust Checks
System Verified
AD9644CCPZ-80 Overview

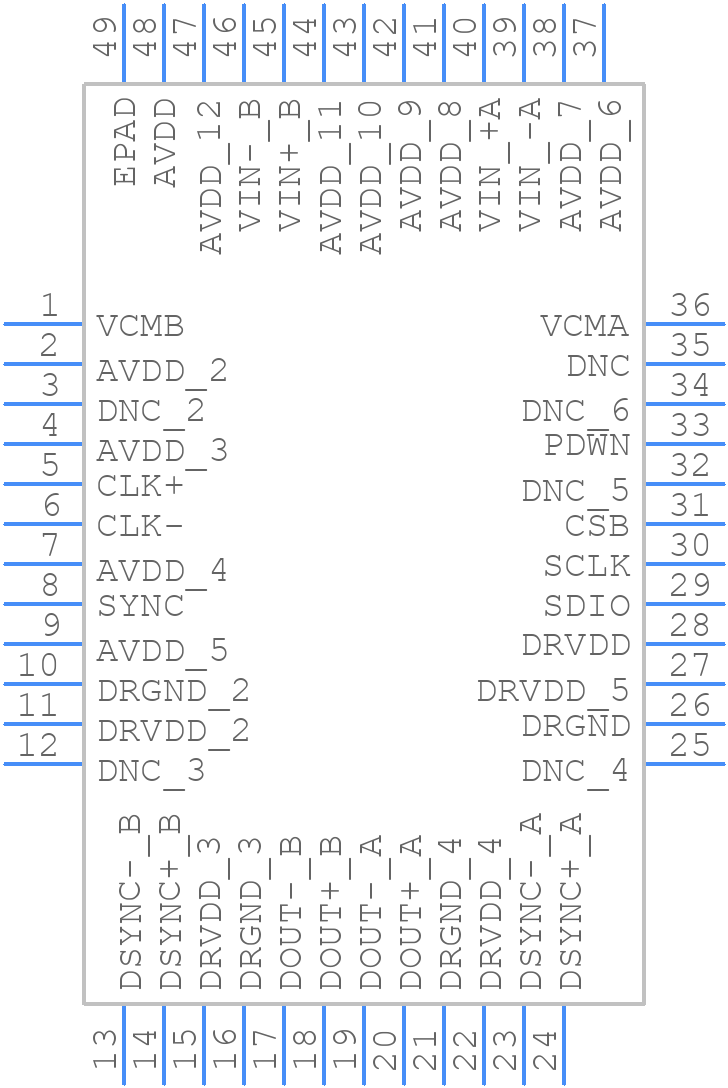

Use the download button to access the AD9644CCPZ-80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD964,
or try a keyword search, such as Analog to Digital Converters
