AD9645BCPZ-80 - Analog Devices

Description: Dual, 14-Bit, 80 MSPS/125 MSPS Serial LVDS 1.8 V Analog-to-Digital Converter

Download AD9645BCPZ-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

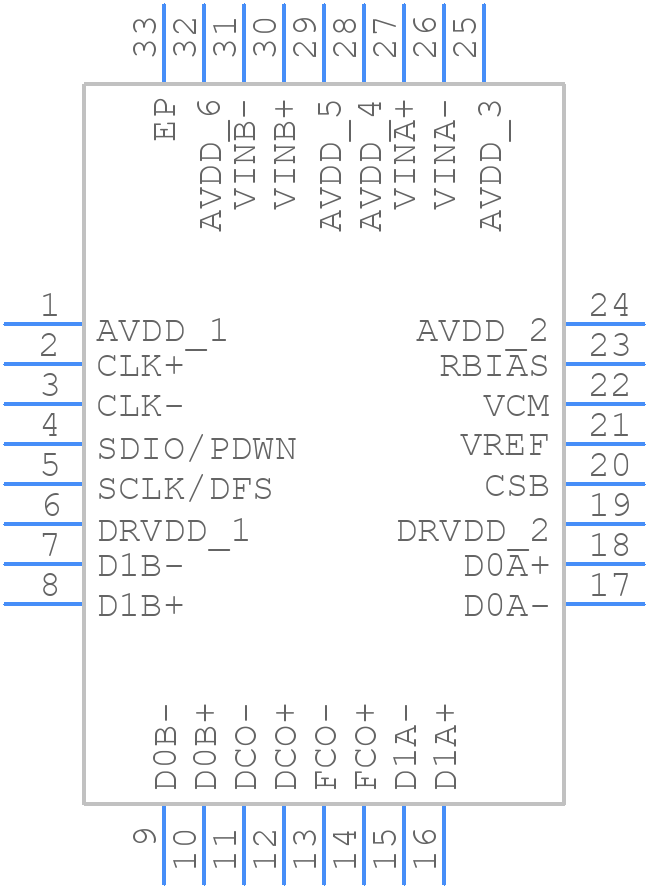

AD9645BCPZ-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9645BCPZ-80 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD9645BCPZ-80
click to zoom
3D Models
AD9645BCPZ-80 - Analog Devices - 3D model - Quad Flat No-Lead - AD9645BCPZ-80
click to zoom

AD9645BCPZ-80 Details

  • Manufacturer Part Number:

    AD9645BCPZ-80

  • Source Url Status Check Date:

    2013-05-01 14:56:31.473

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.1 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0171%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9645BCPZ-80 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9645BCPZ-80 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the AD9645BCPZ-80 in a system with multiple ADCs, ensure that each ADC has its own dedicated analog supply and reference voltage, and that the clock signals are properly synchronized and buffered. Additionally, consider using a common mode filter to reduce noise and crosstalk between the ADCs.
  • The recommended clock source for the AD9645BCPZ-80 is a low-jitter, high-frequency clock source, such as a crystal oscillator or a high-quality clock generator. The clock frequency should be set to the desired sampling frequency, and the clock signal should be properly terminated and buffered to minimize jitter and noise.
  • The digital output data from the AD9645BCPZ-80 should be handled using a high-speed digital interface, such as LVDS or CMOS. The data should be captured and processed using a high-speed digital signal processor or FPGA, and the data should be properly synchronized and aligned to ensure accurate data conversion.
  • The recommended calibration procedure for the AD9645BCPZ-80 involves applying a known input signal, such as a full-scale sine wave, and adjusting the offset and gain of the ADC to optimize its performance. The calibration procedure should be performed at multiple temperatures and supply voltages to ensure optimal performance over the entire operating range.
