AD9649BCPZ-65 - Analog Devices

Description: Analog Devices AD9649BCPZ-65, 14 bit Serial ADC, Differential Input, 32-Pin LFCSP

Download AD9649BCPZ-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

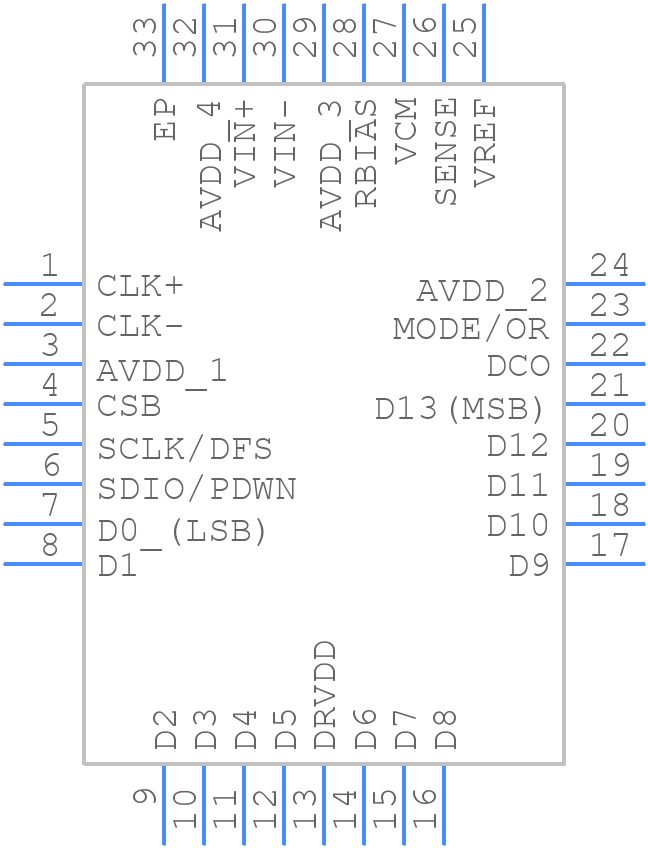

Symbol
AD9649BCPZ-65 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9649BCPZ-65 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package
click to zoom
3D Models
AD9649BCPZ-65 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package
click to zoom

AD9649BCPZ-65 Details

  • Manufacturer Part Number:

    AD9649BCPZ-65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.015 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0079%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9649BCPZ-65 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9649BCPZ-65 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD9649BCPZ-65 in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter to remove high-frequency noise and ensure that the analog input signals are properly terminated.
  • The recommended clocking scheme for the AD9649BCPZ-65 is to use a low-jitter clock source, such as a crystal oscillator or a phase-locked loop (PLL), and to ensure that the clock signal is properly terminated and filtered to minimize jitter and noise.
  • To calibrate the AD9649BCPZ-65, follow the calibration procedure outlined in the datasheet, which involves adjusting the offset and gain of the ADC to optimize its performance. Additionally, use a high-quality calibration signal source and ensure that the ADC is operated within its specified temperature range.
  • The maximum sampling rate of the AD9649BCPZ-65 is 65 MSPS, but this can be affected by the analog input frequency, the clock frequency, and the system's noise floor. It's recommended to consult the datasheet and application notes for more information on optimizing the sampling rate.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9649BCPZ-65 Overview

Use the download button to access the AD9649BCPZ-65 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD964, or try a keyword search, such as Analog to Digital Converters
