AD9649BCPZRL7-65 - Analog Devices

Description: 1.8 V Analog-to-Digital Converter

Download AD9649BCPZRL7-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

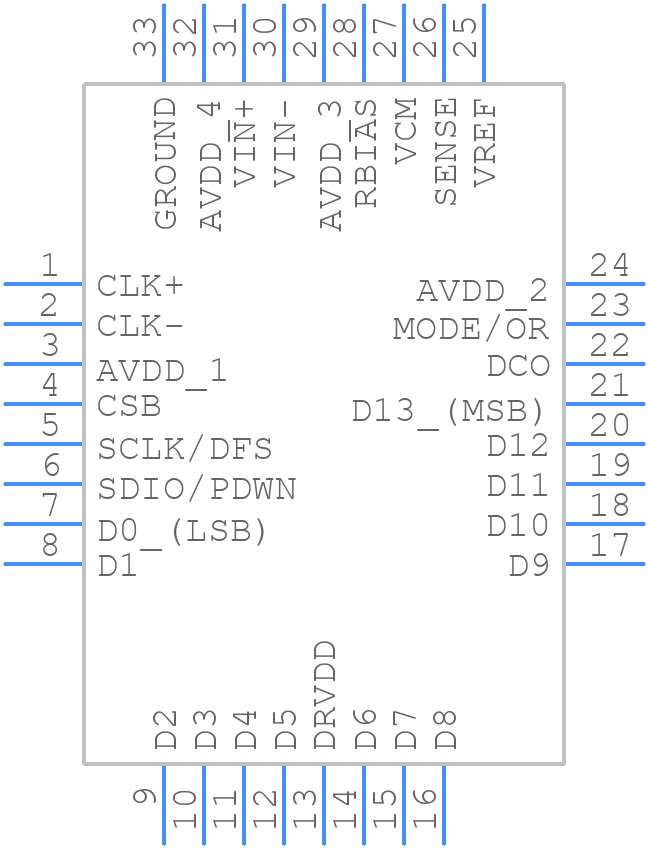

AD9649BCPZRL7-65 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9649BCPZRL7-65 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-11 (LFCSP)
click to zoom
3D Models
AD9649BCPZRL7-65 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-11 (LFCSP)
click to zoom

AD9649BCPZRL7-65 Details

  • Manufacturer Part Number:

    AD9649BCPZRL7-65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.015 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0079%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9649BCPZRL7-65 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9649BCPZRL7-65 can be found in the AD9649 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document (UG-237) that provides general guidelines for high-speed ADC PCB design.
  • To optimize the clock input for the AD9649BCPZRL7-65, use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. Ensure the clock signal is properly terminated and routed to minimize signal degradation. Additionally, use the clock input capacitor (CCLK) to filter out high-frequency noise and improve clock signal quality.
  • The maximum sampling rate for the AD9649BCPZRL7-65 is 65 MSPS, as specified in the datasheet. However, the actual sampling rate may be limited by the system's clock source, analog input bandwidth, and digital output data rate.
  • The AD9649BCPZRL7-65 outputs 14-bit digital data in a DDR (double data rate) format. To handle the digital output data, use a high-speed digital interface, such as an FPGA or ASIC, that can capture and process the DDR data. Ensure the digital interface is properly synchronized with the ADC's clock output (CLKOUT) to avoid data errors.
  • The power consumption of the AD9649BCPZRL7-65 depends on the operating conditions, such as sampling rate, input voltage range, and output data rate. According to the datasheet, the typical power consumption is around 330 mW at 65 MSPS, with a 1.8 V analog supply and a 1.2 V digital supply. However, the actual power consumption may vary depending on the specific application and system design.
