AD9650BCPZ-65 - Analog Devices

Description: ANALOG DEVICES - AD9650BCPZ-65 - ADC, DUAL, 16BIT, 65MSPS, SPI, LFCSP-64

Download AD9650BCPZ-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9650BCPZ-65 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

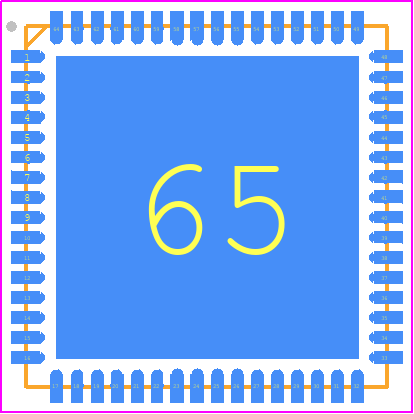

AD9650BCPZ-65 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-64-6)
click to zoom
3D Models
AD9650BCPZ-65 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-64-6)
click to zoom

AD9650BCPZ-65 Details

  • Manufacturer Part Number:

    AD9650BCPZ-65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-6

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.7 V

  • Analog Input Voltage-Min:

    -2.7 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0076%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9650BCPZ-65 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9650BCPZ-65 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD9650BCPZ-65 in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to reduce high-frequency noise, and consider using a common-mode filter to reduce common-mode noise.
  • The AD9650BCPZ-65 can support clock frequencies up to 65 MSPS, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • Calibration of the AD9650BCPZ-65 involves adjusting the offset and gain of the ADC to optimize its performance. This can be done using the on-chip calibration registers or through external calibration techniques. Consult the datasheet and application notes for more information on calibration procedures.
  • The power consumption of the AD9650BCPZ-65 varies depending on the operating mode and clock frequency. Typically, the power consumption is around 350 mW at 65 MSPS, but this can be reduced to around 150 mW at lower clock frequencies. Consult the datasheet for more information on power consumption.
