AD9650BCPZRL7-25 - Analog Devices

Description: 2-Channel Dual ADC Pipelined 25Msps 16-bit Parallel 64-Pin LFCSP EP T/R

Download AD9650BCPZRL7-25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9650BCPZRL7-25 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

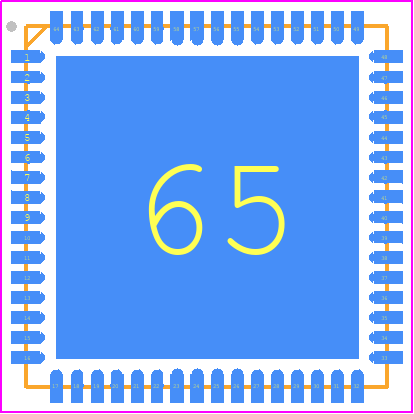

AD9650BCPZRL7-25 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64-6 QFN 64
click to zoom
3D Models
AD9650BCPZRL7-25 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64-6 QFN 64
click to zoom

AD9650BCPZRL7-25 Details

  • Manufacturer Part Number:

    AD9650BCPZRL7-25

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-6

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.7 V

  • Analog Input Voltage-Min:

    -2.7 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9650BCPZRL7-25 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9650BCPZRL7-25 can be found in the AD9650 Evaluation Board documentation (UG-237) and the AD9650 Layout Guidelines document (AN-1141) available on the Analog Devices website.
  • Optimizing the performance of the AD9650BCPZRL7-25 requires careful consideration of the analog input signal, clocking, and digital output interface. Consult the AD9650 datasheet and application notes (such as AN-1141 and AN-835) for guidance on optimizing performance in your specific application.
  • The maximum allowable clock jitter for the AD9650BCPZRL7-25 is dependent on the specific application and sampling frequency. As a general guideline, clock jitter should be kept below 100 ps rms to ensure optimal performance. Consult the AD9650 datasheet and application notes for more information.
  • Yes, the AD9650BCPZRL7-25 can be used in a multi-channel application. However, careful consideration must be given to channel-to-channel isolation, clocking, and digital output interface to ensure optimal performance. Consult the AD9650 datasheet and application notes for guidance on multi-channel applications.
  • The recommended power supply decoupling scheme for the AD9650BCPZRL7-25 involves using a combination of ceramic and electrolytic capacitors to filter out noise and ensure stable power supply voltage. Consult the AD9650 datasheet and application notes for a detailed decoupling scheme.
