AD9653BCPZRL7-125 - Analog Devices

Description: Analog to Digital Converters - ADC 16 Bit 125Msps 1.8V Quad ADC

Download AD9653BCPZRL7-125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

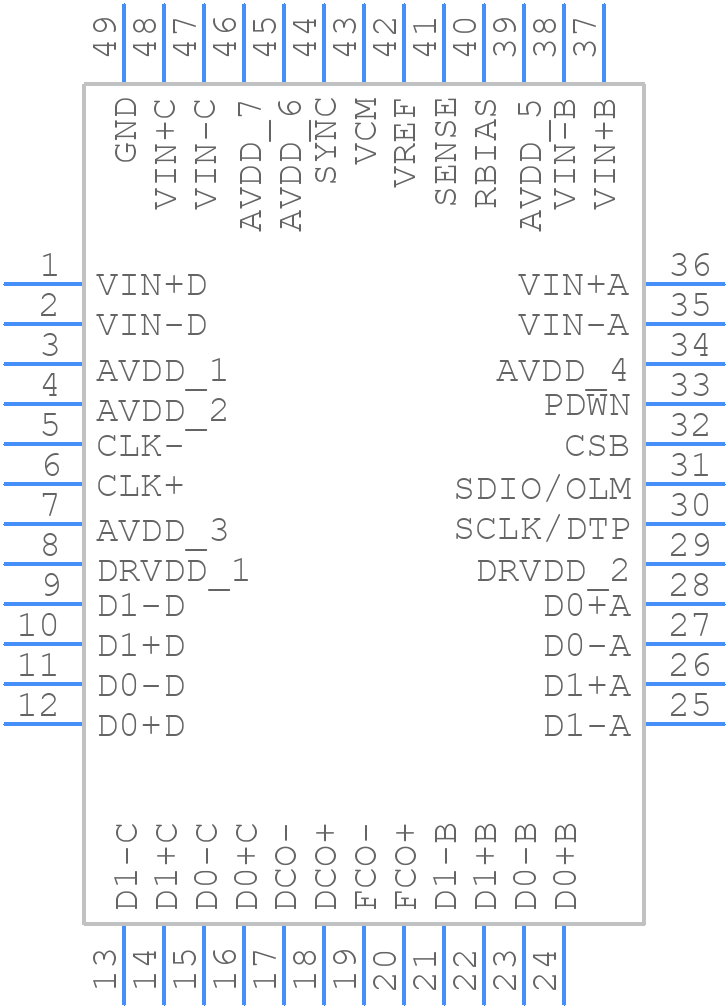

AD9653BCPZRL7-125 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9653BCPZRL7-125 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-13 (LFCSP)
click to zoom
3D Models
AD9653BCPZRL7-125 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-13 (LFCSP)
click to zoom

AD9653BCPZRL7-125 Details

  • Manufacturer Part Number:

    AD9653BCPZRL7-125

  • Source Url Status Check Date:

    2013-05-01 14:56:31.538

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.5.A.5

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.01248%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9653BCPZRL7-125 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9653BCPZRL7-125 involves keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, ensure that the analog and digital power supplies are separated and decoupled properly.
  • To optimize the clock input, use a high-quality clock source with low jitter (<100 ps) and a frequency that is a multiple of the desired sampling rate. Ensure the clock signal is properly terminated and routed to minimize reflections and noise. A clock signal with a 50% duty cycle is recommended.
  • The AD9653BCPZRL7-125 requires a calibration procedure to ensure accurate data conversion. This involves applying a known input signal, measuring the output, and adjusting the internal calibration registers to minimize errors. Refer to the datasheet and application notes for a detailed calibration procedure.
  • The AD9653BCPZRL7-125 outputs 14-bit or 12-bit data, depending on the mode. The output data should be processed using a digital signal processor (DSP) or a field-programmable gate array (FPGA) to perform tasks such as filtering, gain correction, and data formatting. A typical data processing pipeline involves offset correction, gain correction, and filtering to remove noise and artifacts.
  • The AD9653BCPZRL7-125 has a maximum junction temperature of 125°C. Ensure good thermal conductivity by using a heat sink or a thermally conductive PCB material. Keep the device away from heat sources, and ensure good airflow around the device. Monitor the device temperature using the internal temperature sensor and adjust the system design accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9653BCPZRL7-125 Overview

Use the download button to access the AD9653BCPZRL7-125 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD965, or try a keyword search, such as Analog to Digital Converters
