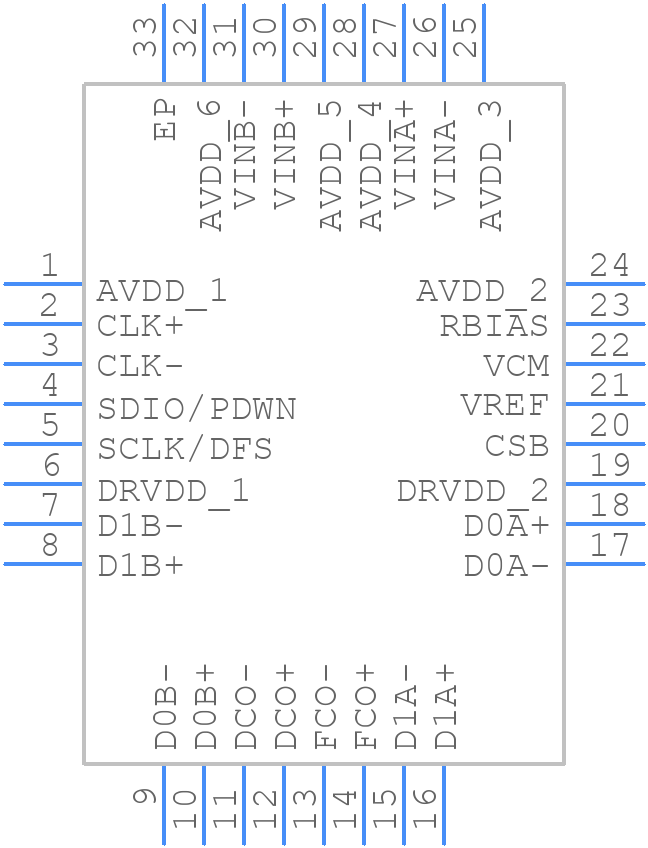

AD9655BCPZ-125 - Analog Devices

AD9655BCPZ-125 Details

• Manufacturer Part Number:

  AD9655BCPZ-125

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

• Pin Count:

  32

• Manufacturer Package Code:

  CP-32-12

• Country Of Origin:

  South Korea

• ECCN Code:

  3A001.A.5.A.5

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  2 V

• Analog Input Voltage-Min:

  -2 V

• Conversion Time-Max:

  0.05 µs

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-XQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Linearity Error-Max (EL):

  0.0061%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  2

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  125 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
