AD9665ACPZ-REEL7 - Analog Devices

Description: 4-Channel, LVDS, Dual-Output, Laser Diode Driver with Oscillator

Download AD9665ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

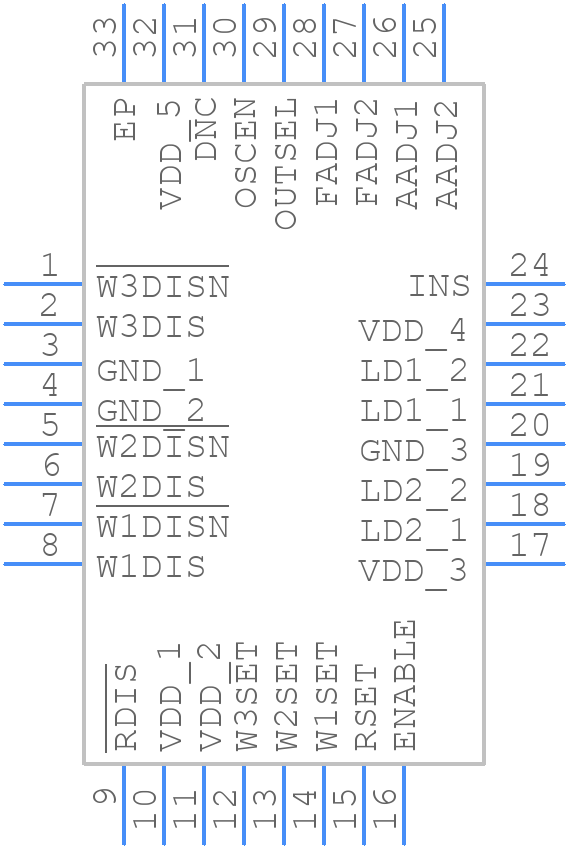

Symbol
AD9665ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9665ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead, Pad-Up, Lead Frame Chip Scale Package [LFCSP_VQ] 5 mm × 5 mm Body, Very Thin Quad*
click to zoom
3D Models
AD9665ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead, Pad-Up, Lead Frame Chip Scale Package [LFCSP_VQ] 5 mm × 5 mm Body, Very Thin Quad*
click to zoom

AD9665ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD9665ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XBCS-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCS

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9665ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9665 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD9665 requires a clean and stable power supply. Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 0.1uF capacitor between AVCC and AGND. Additionally, use a 1uF capacitor between DVCC and DGND. Ensure the power supply is well-regulated and decoupled.
  • The AD9665 can operate with a clock frequency up to 65 MHz. However, the recommended clock frequency is between 10 MHz to 40 MHz for optimal performance.
  • The AD9665's analog input stage can be optimized by selecting the appropriate gain setting, input range, and input impedance. Consult the datasheet and application notes for guidance on selecting the optimal settings for your specific application.
  • The AD9665's digital interface can transfer data at up to 40 Mbps. However, the actual data transfer rate may be limited by the specific application and system requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9665ACPZ-REEL7 Overview

Use the download button to access the AD9665ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD966, or try a keyword search, such as Clock Generators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
