AD9680BCPZ-500 - Analog Devices

Description: 14-Bit, 1.25 GSPS/1 GSPS/820 MSPS/500 MSPS JESD204B, Dual Analog-to-Digital Converter

Download AD9680BCPZ-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9680BCPZ-500 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

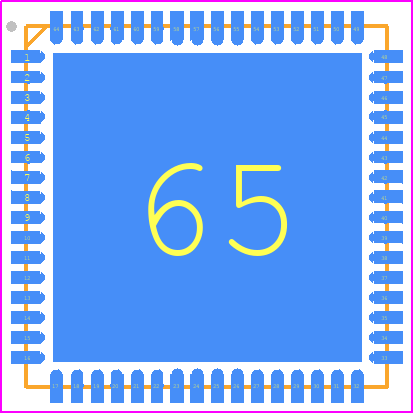

AD9680BCPZ-500 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64-15
click to zoom
3D Models
AD9680BCPZ-500 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64-15
click to zoom

AD9680BCPZ-500 Details

  • Manufacturer Part Number:

    AD9680BCPZ-500

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.5.A.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.06 V

  • Analog Input Voltage-Min:

    -2.06 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    500 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    467 mA

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9680BCPZ-500 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter and a low-pass filter to reduce noise.
  • Use a low-jitter clock source (<100 ps) and ensure the clock signal is clean and free of noise. Use a clock buffer to isolate the clock signal from the rest of the circuit. Also, ensure the clock frequency is within the recommended range (1.5 GHz to 2.5 GHz).
  • Power up the device in the following sequence: AVDD, DVDD, and then the clock signal. Ensure all power supplies are stable before applying the clock signal. Also, ensure the device is in a known state (e.g., reset) before applying the clock signal.
  • Use a low-noise, high-impedance analog input signal source. Use a balun or a transformer to match the impedance of the signal source to the AD9680BCPZ-500. Use a low-pass filter to remove high-frequency noise and a common mode filter to remove common mode noise.
  • Perform a full-scale calibration after power-up and after any changes to the device configuration. Use the SPI interface to access the device's calibration registers. Follow the calibration procedure outlined in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9680BCPZ-500 Overview

Use the download button to access the AD9680BCPZ-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD968, or try a keyword search, such as Analog to Digital Converters
