AD9680BCPZRL7-1250 - Analog Devices

Description: 14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-LFCSP (9x9), 1.22V ~ 1.28V, -40°C ~ 85°C

Download AD9680BCPZRL7-1250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9680BCPZRL7-1250 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

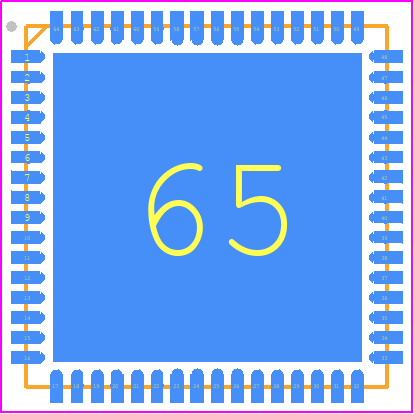

AD9680BCPZRL7-1250 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64-15_2025
click to zoom
3D Models
AD9680BCPZRL7-1250 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64-15_2025
click to zoom

AD9680BCPZRL7-1250 Details

  • Manufacturer Part Number:

    AD9680BCPZRL7-1250

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.5.A.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.58 V

  • Analog Input Voltage-Min:

    -1.58 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1250 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    880 mA

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9680BCPZRL7-1250 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9680's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The device's exposed pad should be connected to a solid ground plane to reduce thermal resistance and improve heat dissipation.
  • The AD9680 requires a low-jitter clock source. A recommended clocking scheme is to use a low-jitter clock source, such as a crystal oscillator, and to use a clock buffer to distribute the clock signal to the AD9680. The clock signal should be routed close to the device and should not be routed near noisy digital signals.
  • A good power supply decoupling scheme is essential for the AD9680's performance. Analog Devices recommends using a combination of ceramic and electrolytic capacitors to decouple the power supplies. The capacitors should be placed close to the device's power pins, and the power supply lines should be routed away from noisy digital signals.
  • The analog input signal chain should be optimized to minimize noise and distortion. A recommended approach is to use a low-noise, high-impedance analog input signal source, and to use a high-precision, low-distortion amplifier to drive the AD9680's analog input pins. The analog input signal should be routed close to the device and should not be routed near noisy digital signals.
  • The AD9680's digital interface can be configured in various ways. A recommended approach is to use a low-voltage differential signaling (LVDS) interface, which provides a high-speed, low-power interface. The digital interface should be configured to match the system's requirements, and the interface signals should be routed away from noisy analog signals.
