AD9683BCPZ-250 - Analog Devices

Description: 14-Bit, 170 MSPS/250 MSPS, JESD204B, Analog-to-Digital Converter

Download AD9683BCPZ-250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

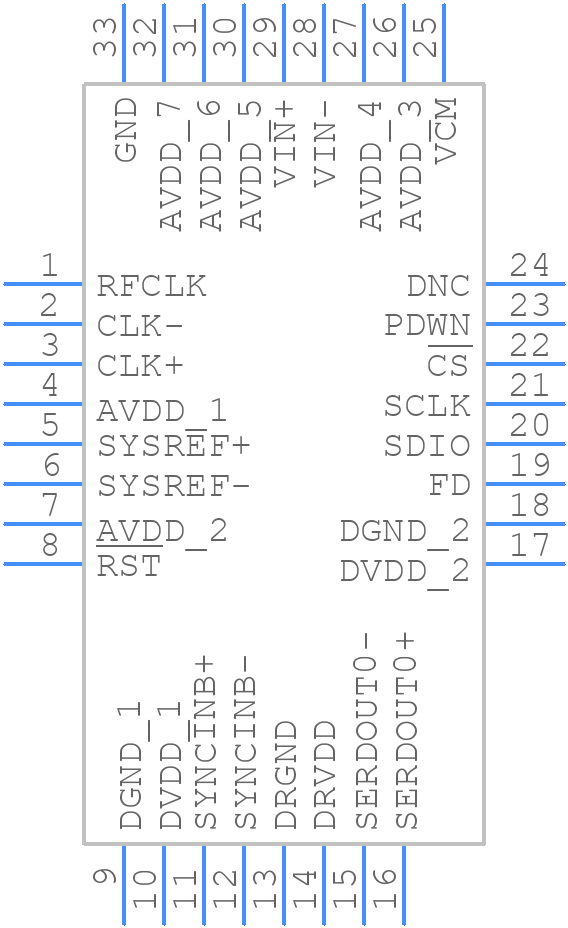

Symbol
AD9683BCPZ-250 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9683BCPZ-250 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12)
click to zoom
3D Models
AD9683BCPZ-250 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12)
click to zoom

AD9683BCPZ-250 Details

  • Manufacturer Part Number:

    AD9683BCPZ-250

  • Source Url Status Check Date:

    2013-05-01 14:56:31.584

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.75 V

  • Analog Input Voltage-Min:

    -1.75 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0165%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    250 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9683BCPZ-250 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter and a low-pass filter to reduce noise and EMI.
  • Use a low-jitter clock source (<100 ps) and ensure the clock signal is clean and free of noise. Use a clock buffer or a clock distribution network to ensure a stable clock signal. Also, ensure the clock frequency is within the recommended range (1.5 GHz to 2.5 GHz).
  • Power up the device in the following sequence: AVDD, DVDD, and then CLK+. Ensure the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Perform a full-scale calibration by applying a full-scale input signal and adjusting the offset and gain settings. Use the SPI interface to access the calibration registers and adjust the settings accordingly. Refer to the datasheet for the recommended calibration procedure.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow. Keep the device away from other heat sources and ensure the ambient temperature is within the recommended range (−40°C to +85°C).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9683BCPZ-250 Overview

Use the download button to access the AD9683BCPZ-250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD968, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
