AD9694BCPZRL7-500 - Analog Devices

Description: 14 Bit Analog to Digital Converter 4 Input 4 Pipelined 72-LFCSP-VQ (10x10)

Download AD9694BCPZRL7-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9694BCPZRL7-500 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

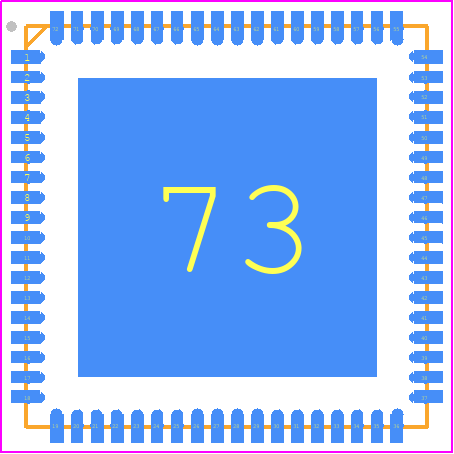

AD9694BCPZRL7-500 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 mm × 10 mm Body and 0.85 mm Package Height (CP-72-10)-2
click to zoom
3D Models
AD9694BCPZRL7-500 - Analog Devices - 3D model - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 mm × 10 mm Body and 0.85 mm Package Height (CP-72-10)-2
click to zoom

AD9694BCPZRL7-500 Details

  • Manufacturer Part Number:

    AD9694BCPZRL7-500

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-72

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-10

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A001.A.5.A.4

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-10-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.16 V

  • Analog Input Voltage-Min:

    -2.16 V

  • Conversion Time-Max:

    0.000416 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0311%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    500 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    0.975 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD9694BCPZRL7-500 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9694's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout, but it's also recommended to consult with Analog Devices' application notes and PCB layout guidelines for more detailed information.
  • The AD9694 has a flexible clocking and synchronization scheme, but it requires careful planning to optimize its performance. Engineers should consult the datasheet and application notes to understand the clocking and synchronization options, and then simulate and test their specific configuration to ensure optimal performance.
  • The AD9694's JESD204B interface can support data rates up to 12.5 Gbps per lane, but the actual data rate achievable depends on the specific FPGA or ASIC used, as well as the system's signal integrity and PCB layout. Engineers should consult the datasheet and FPGA/ASIC documentation to determine the maximum data rate for their specific application.
  • The AD9694's analog input signals require proper filtering and conditioning to achieve optimal performance. Engineers should consult the datasheet and application notes to understand the recommended filtering and conditioning schemes, and then design and test their specific implementation to ensure optimal performance.
  • The AD9694's power consumption depends on the specific configuration and operating conditions. The datasheet provides typical power consumption values, but engineers should consult the datasheet and application notes to understand the power consumption trade-offs and optimize their specific design for minimum power consumption.
