AD9714BCPZRL7 - Analog Devices

Description: Dual, 8-Bit Low Power Digital-to-Analog Converters

Download AD9714BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

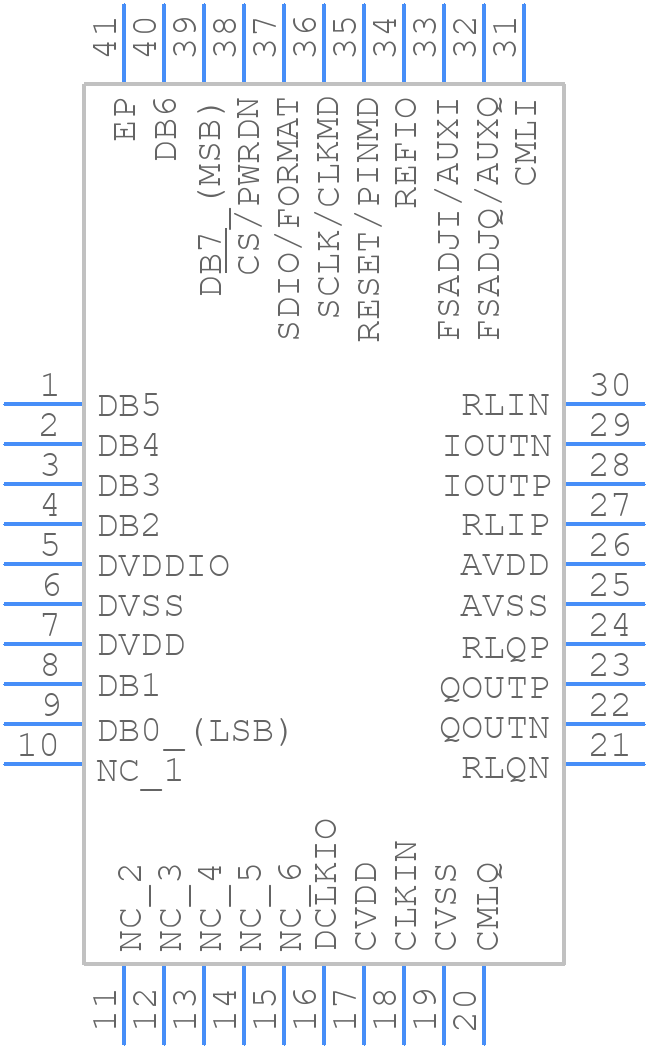

AD9714BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9714BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package
click to zoom
3D Models
AD9714BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package
click to zoom

AD9714BCPZRL7 Details

  • Manufacturer Part Number:

    AD9714BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.2 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD9714BCPZRL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9714BCPZRL7 involves separating the analog and digital sections, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid routing digital signals under the device.
  • To configure the internal PLL for optimal clock jitter performance, set the PLL loop bandwidth to around 100 kHz to 200 kHz, and ensure that the PLL input clock is clean and has low jitter. Additionally, use the PLL's built-in jitter cleaner and adjust the PLL's gain and damping factors according to the application's requirements.
  • The maximum allowable clock frequency for the AD9714BCPZRL7's JESD204B interface is 12.288 GHz, which corresponds to a lane rate of up to 12.288 Gbps.
  • To troubleshoot issues with the AD9714BCPZRL7's JESD204B interface, use a logic analyzer or a JESD204B protocol analyzer to capture and analyze the interface signals. Check for proper lane alignment, 8B/10B encoding, and clock domain crossing. Also, verify that the device is properly configured and that the system clock is stable and within specifications.
  • The recommended power-up sequence for the AD9714BCPZRL7 is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the interface clock (CLK+ and CLK-). This sequence helps to ensure proper operation and minimize power consumption.
