AD9715BCPZRL7 - Analog Devices

Description: Dual, 10-Bit Low Power Digital-to-Analog Converters

Download AD9715BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

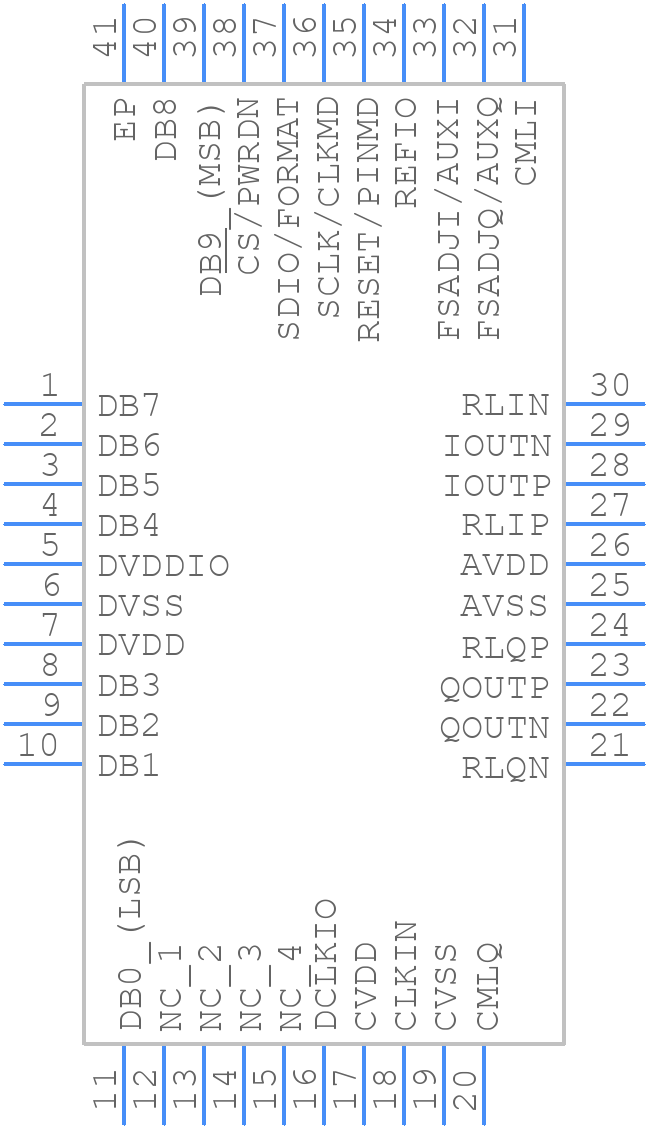

AD9715BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9715BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP]*
click to zoom
3D Models
AD9715BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP]*
click to zoom

AD9715BCPZRL7 Details

  • Manufacturer Part Number:

    AD9715BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.2 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD9715BCPZRL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9715BCPZRL7 involves separating the analog and digital sections, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and crosstalk.
  • To configure the internal PLL for optimal clock jitter performance, set the PLL loop bandwidth to around 100 kHz to 200 kHz, and adjust the PLL charge pump current to around 100 μA to 200 μA. Additionally, ensure that the PLL reference clock is clean and stable, and that the PLL is properly bypassed with capacitors.
  • The maximum allowable clock frequency for the AD9715BCPZRL7's JESD204B interface is 12.288 GHz, which corresponds to a lane rate of 12.288 Gbps. However, the actual clock frequency may be limited by the system's specific requirements and the quality of the clock signal.
  • To troubleshoot issues with the AD9715BCPZRL7's data transmission over the JESD204B interface, check the clock signal quality, ensure that the lane alignment is correct, and verify that the data is being transmitted correctly. Additionally, use tools such as a logic analyzer or a JESD204B protocol analyzer to debug the issue.
  • The power consumption of the AD9715BCPZRL7 varies depending on the operating mode. In full-power mode, the device consumes around 1.2 W. In low-power mode, the device consumes around 600 mW. In standby mode, the device consumes around 10 mW. The actual power consumption may vary depending on the specific application and operating conditions.
