AD9716BCPZRL7 - Analog Devices

Description: Dual, 12-Bit Low Power Digital-to-Analog Converters

Download AD9716BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

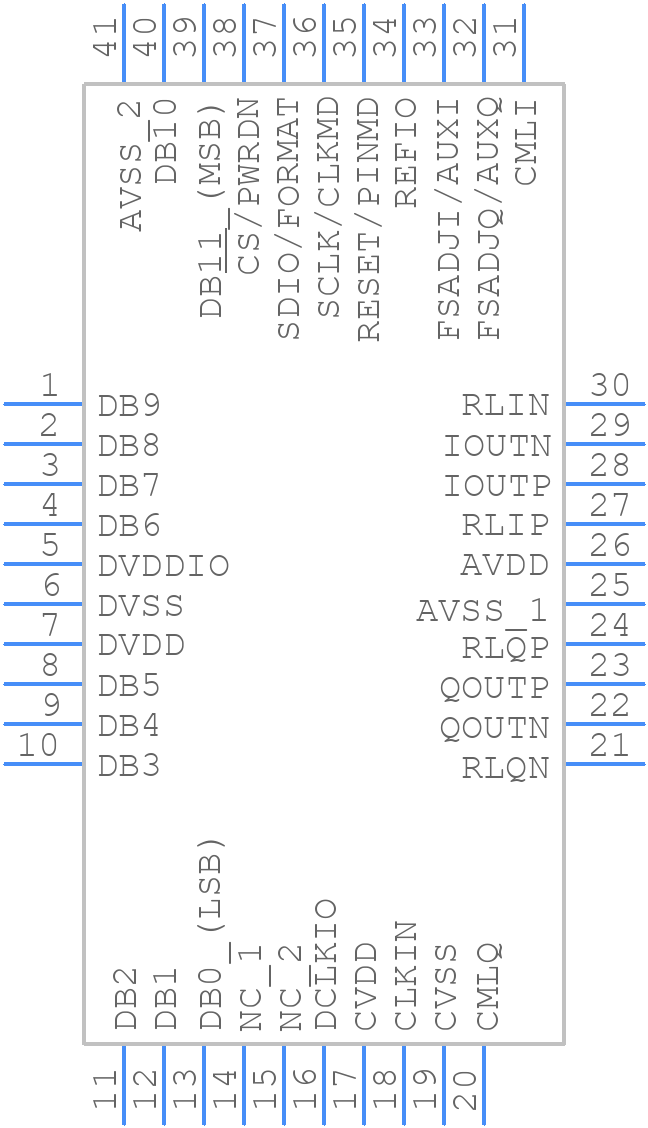

Symbol
AD9716BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9716BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 x 6 mm Body and 0.85 mm Package Height (CP-40-1)
click to zoom
3D Models
AD9716BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 x 6 mm Body and 0.85 mm Package Height (CP-40-1)
click to zoom

AD9716BCPZRL7 Details

  • Manufacturer Part Number:

    AD9716BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.2 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD9716BCPZRL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9716BCPZRL7 involves separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, keep the analog input traces short and away from digital signals, and use a shielded cable for the analog input connection.
  • The internal voltage reference of the AD9716BCPZRL7 can be configured by connecting the VREF pin to a voltage source or leaving it open-circuited for an internal 2.5V reference. Ensure that the VREF pin is decoupled with a 10nF capacitor to reduce noise.
  • The maximum sampling rate of the AD9716BCPZRL7 is 250kSPS. As the sampling rate increases, the device's power consumption also increases. To minimize power consumption, operate the device at the lowest sampling rate required for your application.
  • The AD9716BCPZRL7's output data format can be configured as 2's complement or offset binary. 2's complement format is suitable for most applications, while offset binary format is useful when working with unsigned data. Ensure that your microcontroller or processor can handle the chosen output format.
  • The AD9716BCPZRL7 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or a thermally conductive PCB material. Operate the device within the recommended temperature range (-40°C to 125°C) to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9716BCPZRL7 Overview

Use the download button to access the AD9716BCPZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD971, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
