Technical Content
Part Image

AD9717BCPZRL7 - Analog Devices

Description: Digital to Analog Converters - DAC Dual 14B, Low Power D-A Converter

Download AD9717BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

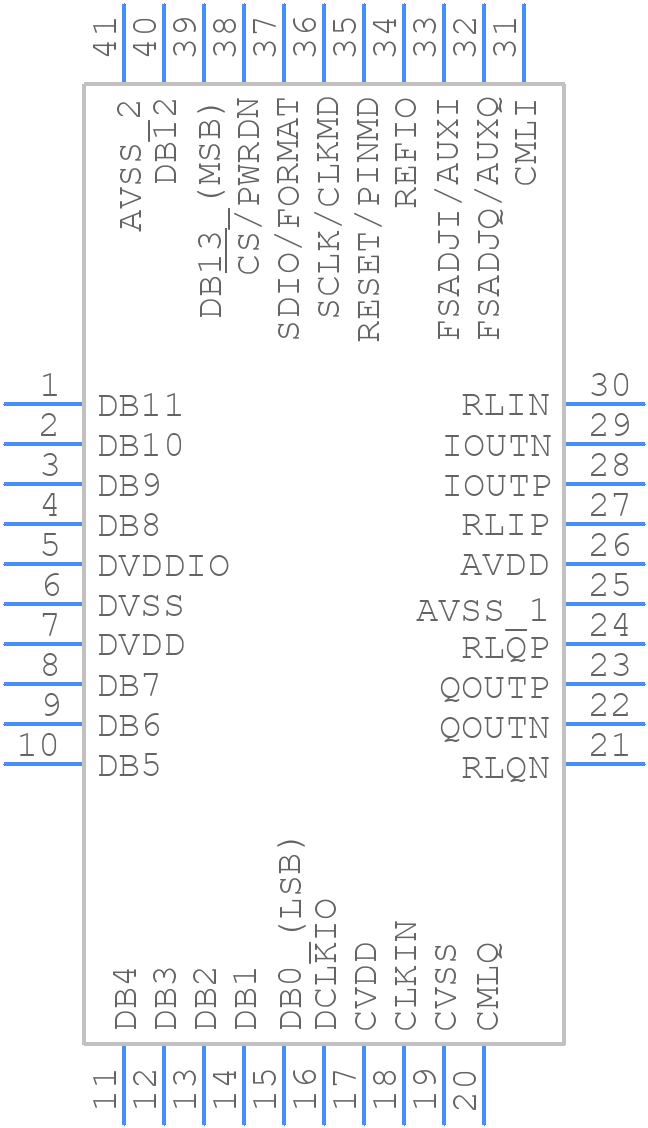

AD9717BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9717BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-1 (LFCSP)_BSC
click to zoom
3D Models
AD9717BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-1 (LFCSP)_BSC
click to zoom

AD9717BCPZRL7 Details

  • Manufacturer Part Number:

    AD9717BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.2 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD9717BCPZRL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a star-grounding scheme to minimize noise.
  • Consult the AD9717BCPZRL7's application notes and design guides for specific application notes. For example, for audio applications, use a differential input configuration and optimize the gain and filtering for the specific audio frequency range.
  • The AD9717BCPZRL7 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow thermal design guidelines to maintain a safe operating temperature.
  • Use a systematic approach to troubleshoot, checking power supply, input signals, and output loading. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
  • Follow proper PCB layout and shielding techniques to minimize EMI and RFI. Ensure that the AD9717BCPZRL7 is used within its specified frequency range and that the system meets regulatory standards such as FCC, CE, and CISPR.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9717BCPZRL7 Overview

Use the download button to access the AD9717BCPZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD971, or try a keyword search, such as Digital to Analog Converters
