AD9726BSVZ - Analog Devices

Description: AD9726BSVZ, 16 bit-Bit DAC 400Msps, Parallel, 80-Pin TQFP EP

Download AD9726BSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9726BSVZ - Analog Devices - PCB symbol
click to zoom

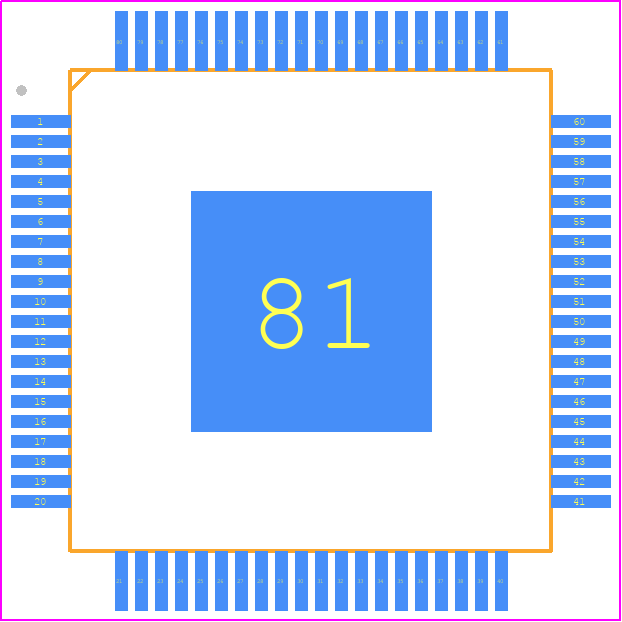

PCB Footprints
AD9726BSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-80-1(TQFP)
click to zoom
3D Models
AD9726BSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-80-1(TQFP)
click to zoom

AD9726BSVZ Details

  • Manufacturer Part Number:

    AD9726BSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-026ADD-HD, TQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    SV-80-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.0105 µs

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

AD9726BSVZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and AVSS) first, followed by the digital power supplies (DVDD and DVSS). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance, ensure that the analog and digital power supplies are well-filtered and decoupled, and that the analog input signals are properly terminated and filtered. Additionally, use a low-noise clock source and ensure that the clock signal is properly terminated.
  • The AD9726BSVZ can support clock frequencies up to 65 MHz, but the maximum frequency may vary depending on the specific application and system requirements.
  • The AD9726BSVZ has a programmable gain amplifier (PGA) that can be configured for different analog input ranges using the SPI interface. The PGA gain can be set to 1, 2, or 4, allowing the device to accommodate input ranges from 0 to 2 V, 0 to 1 V, or 0 to 0.5 V, respectively.
  • The latency of the AD9726BSVZ is approximately 10 clock cycles, which can affect system performance in high-speed applications. To minimize the impact of latency, ensure that the system is designed to accommodate the latency of the AD9726BSVZ and that the clock frequency is sufficient to meet system requirements.
