AD974ANZ - Analog Devices

Description: AD974ANZ, 16 bit ADC SPI, 28-Pin PDIP W

Download AD974ANZ Model

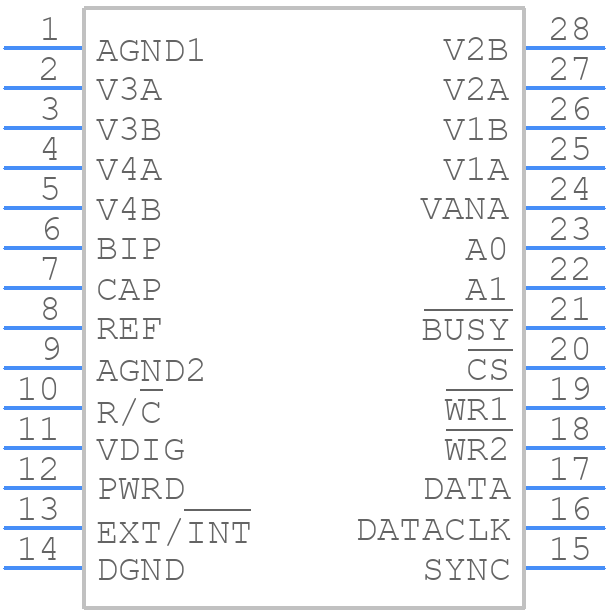

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

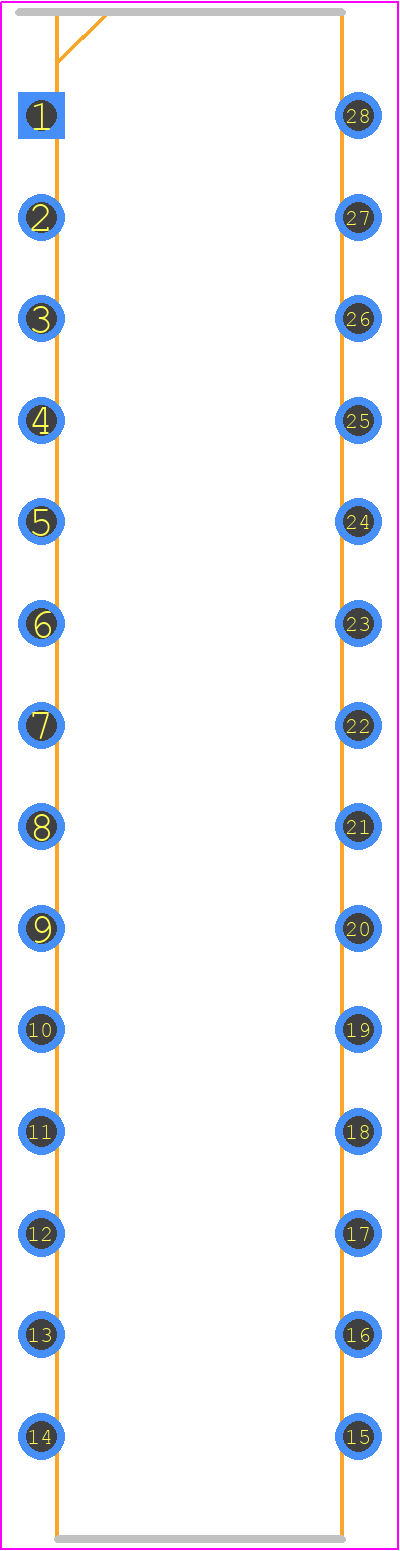

AD974ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N_28B
click to zoom
3D Models
AD974ANZ - Analog Devices  - 3D model - Dual-In-Line Packages - N_28B
click to zoom

AD974ANZ Details

  • Manufacturer Part Number:

    AD974ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N-28-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.687 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD974ANZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, ensure that the analog input signal is properly terminated, use a low-noise power supply, and optimize the clock signal quality. Additionally, adjust the internal voltage regulators and analog output stage to minimize noise and distortion.
  • The maximum clock frequency is 1.25 GHz, but it's recommended to use a clock frequency between 500 MHz to 1 GHz for optimal performance.
  • Use a low-voltage differential signaling (LVDS) interface to connect the AD974ANZ to a FPGA or ASIC. Ensure that the interface is properly terminated and that the clock signal is synchronized with the data transmission.
  • The typical power consumption of the AD974ANZ is around 1.5 W, but it can vary depending on the operating frequency, output voltage, and other factors.
