AD974ARZ - Analog Devices

Description: AD974ARZ, 16 bit ADC SPI, 28-Pin SOIC W

Download AD974ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

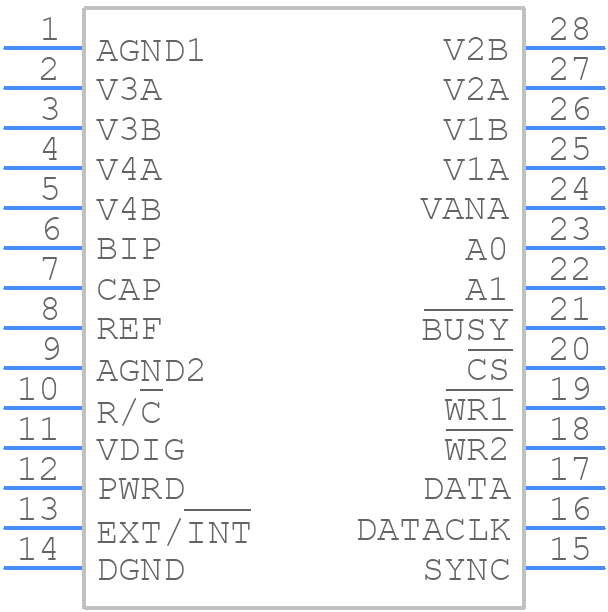

AD974ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD974ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-28 (SOIC)
click to zoom
3D Models
AD974ARZ - Analog Devices - 3D model - Small Outline Packages - R-28 (SOIC)
click to zoom

AD974ARZ Details

  • Manufacturer Part Number:

    AD974ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD974ARZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital power supplies (DVCC and OVCC). This ensures proper device operation and prevents latch-up.
  • Optimization involves selecting the correct clock frequency, adjusting the analog input range, and configuring the digital interface (e.g., SPI or parallel). Consult the datasheet and application notes for guidance on optimizing performance for your specific use case.
  • The AD974ARZ supports clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements. Consult the datasheet and application notes for more information.
  • The AD974ARZ provides a 14-bit or 12-bit parallel output data format, depending on the configuration. Ensure that your system is designed to accommodate the selected data format and word length to avoid data corruption or misinterpretation.
  • The typical power consumption of the AD974ARZ varies depending on the operating frequency, voltage supply, and other factors. Consult the datasheet for specific power consumption values and guidelines for power management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD974ARZ Overview

Use the download button to access the AD974ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD974, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
