AD974BRS-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 4CH 16-Bit 200 kSPS

Download AD974BRS-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

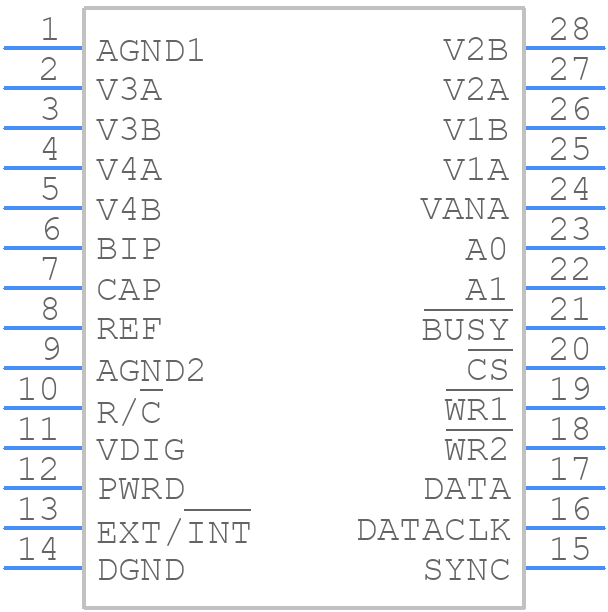

Symbol
AD974BRS-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD974BRS-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)_1
click to zoom
3D Models
AD974BRS-RL7 - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)_1
click to zoom

AD974BRS-RL7 Details

  • Manufacturer Part Number:

    AD974BRS-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:31.868

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD974BRS-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD974BRS-RL7's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout, but it's also recommended to consult with a PCB design expert.
  • The AD974BRS-RL7 requires calibration to ensure accurate performance. Calibration involves adjusting the internal voltage references and gain settings. Analog Devices provides a calibration procedure in the datasheet, which involves applying specific input signals and measuring the output. It's recommended to follow the procedure carefully to ensure accurate calibration.
  • The AD974BRS-RL7 can handle clock frequencies up to 1.2 GHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult with Analog Devices' application engineers to determine the maximum clock frequency for a specific design.
  • The AD974BRS-RL7 has a power-down mode that can reduce power consumption. Additionally, the device's power consumption can be reduced by optimizing the clock frequency, reducing the output current, and using a lower supply voltage. It's recommended to consult with Analog Devices' application engineers to determine the best approach for a specific design.
  • The AD974BRS-RL7 is specified to operate over a temperature range of -40°C to +85°C. However, the device's performance may vary depending on the temperature. It's recommended to consult with Analog Devices' application engineers to determine the optimal operating temperature range for a specific design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD974BRS-RL7 Overview

Use the download button to access the AD974BRS-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD974, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
