AD9760ARU - Analog Devices

Description: Digital to Analog Converters - DAC 10 BIT 100 MSPS+ TxDAC D/A Converter

Download AD9760ARU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

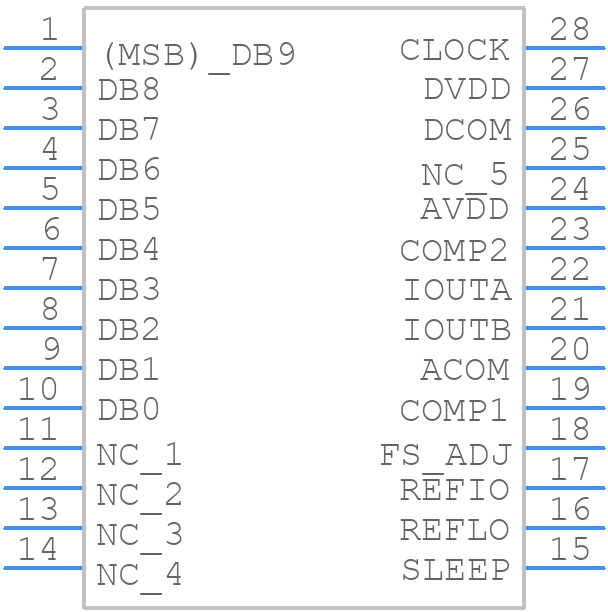

AD9760ARU - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9760ARU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)
click to zoom
3D Models
AD9760ARU - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)
click to zoom

AD9760ARU Details

  • Manufacturer Part Number:

    AD9760ARU

  • Source Url Status Check Date:

    2013-05-01 14:56:31.922

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    0.170 INCH, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD9760ARU Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD9760ARU involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DAC output and the load. Additionally, it's recommended to use a low-ESR capacitor for the VREF pin and to decouple the power supplies with 0.1uF and 10uF capacitors.
  • To optimize the performance of the AD9760ARU, it's recommended to use a low-noise power supply, minimize the noise on the reference voltage, and use a high-quality clock source. Additionally, the output filter should be optimized for the specific application, and the DAC output should be terminated with a low-impedance load.
  • The maximum clock frequency that can be used with the AD9760ARU is 100 MHz, but it's recommended to use a clock frequency that is at least 10 times the Nyquist frequency of the signal being generated to ensure accurate reconstruction of the signal.
  • To synchronize multiple AD9760ARU devices, it's recommended to use a common clock source and to ensure that the clock signal is distributed equally to all devices. Additionally, the SYNC pin can be used to synchronize the devices, and the LDAC pin can be used to latch the data into the DAC registers simultaneously.
  • The recommended method for driving the output of the AD9760ARU is to use a low-impedance output stage, such as an op-amp or a buffer, to drive the load. The output stage should be designed to provide a high slew rate and a low output impedance to ensure accurate signal reconstruction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9760ARU Overview

Use the download button to access the AD9760ARU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD976, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
