THS5651AIPW - Texas Instruments

Description: 10-Bit, 125-MSPS Digital-to-Analog Converter (DAC)

Download THS5651AIPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

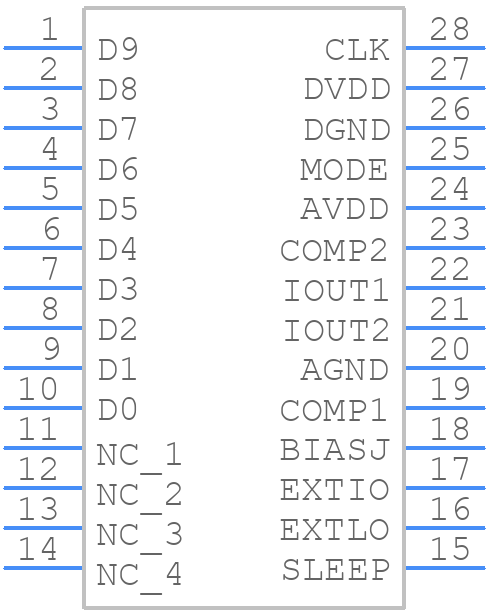

THS5651AIPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS5651AIPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
THS5651AIPW - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

THS5651AIPW Details

  • Manufacturer Part Number:

    THS5651AIPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS5651AIPW Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS5651AIPW involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device. It's also important to decouple the power supply with a 10uF capacitor and a 0.1uF capacitor in parallel.
  • The maximum power dissipation of the THS5651AIPW is 1.4W. However, it's recommended to keep the junction temperature below 150°C to ensure reliable operation. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • Yes, the THS5651AIPW can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. Additionally, the output voltage swing will be reduced in single-supply operation.
  • To filter out high-frequency noise, a low-pass filter can be added at the output of the THS5651AIPW. A simple RC filter with a cutoff frequency of around 100kHz can be effective in reducing high-frequency noise.
