AD976CNZ - Analog Devices

AD976CNZ Details

• Manufacturer Part Number:

  AD976CNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

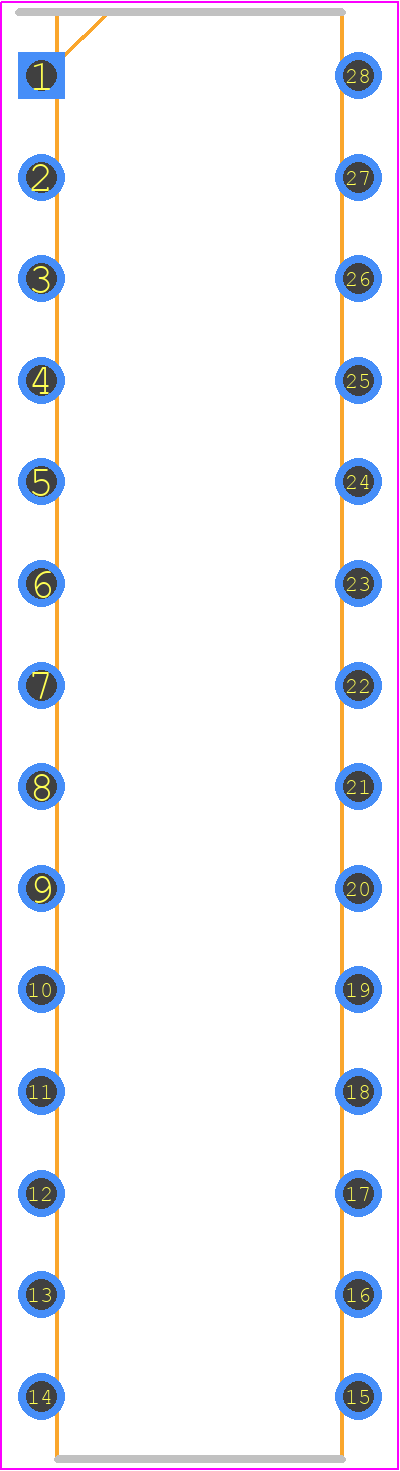

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, SKINNY, PLASTIC, DIP-28

• Pin Count:

  28

• Manufacturer Package Code:

  N-28-1

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Input Voltage-Max:

  10 V

• Analog Input Voltage-Min:

  -10 V

• Conversion Time-Max:

  8 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDIP-T28

• JESD-609 Code:

  e3

• Length:

  35.687 mm

• Linearity Error-Max (EL):

  0.0046%

• Number of Analog In Channels:

  1

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.1 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  5.33 mm

• Supply Current-Max:

  11 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
