AD9778BSVZ - Analog Devices

Description: Dual 14-Bit, 1 GSPS, Digital-to-Analog Converter

Download AD9778BSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9778BSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

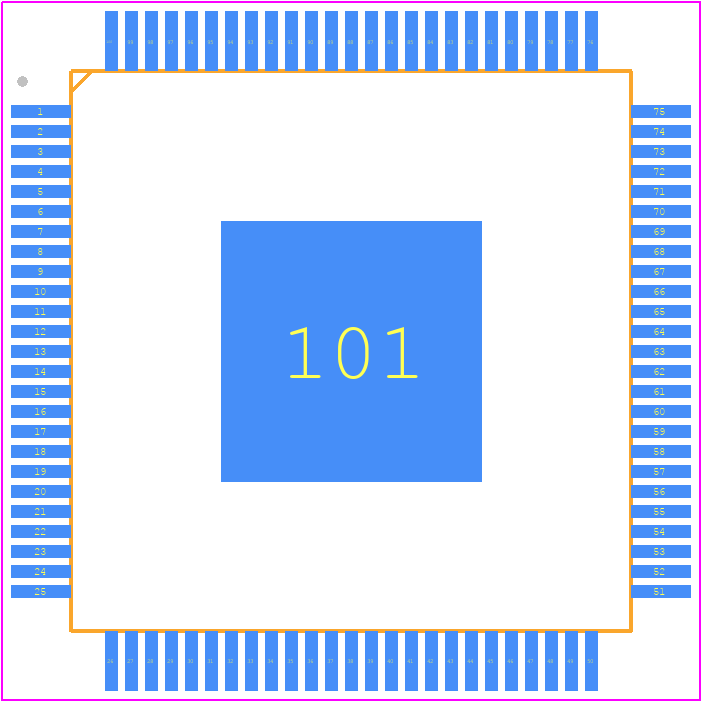

AD9778BSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom
3D Models
AD9778BSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom

AD9778BSVZ Details

  • Manufacturer Part Number:

    AD9778BSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, MS-026AED-HD, TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    2

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

AD9778BSVZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, ensure that the device is operated within the recommended operating conditions, use a low-noise power supply, and minimize digital noise coupling to the analog circuitry. Additionally, use a high-quality clock source and ensure that the clock signal is clean and stable.
  • The maximum clock frequency that can be used with the AD9778BSVZ is 1.25 GHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
  • The AD9778BSVZ can be configured for different output formats using the SPI interface. The device supports various output formats, including DDR, SDR, and LVDS. The specific configuration depends on the application requirements and can be achieved by programming the device's registers accordingly.
  • The typical power consumption of the AD9778BSVZ is around 1.2 W at a clock frequency of 1.25 GHz. However, the actual power consumption may vary depending on the specific application, operating conditions, and output format used.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9778BSVZ Overview

Use the download button to access the AD9778BSVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD977, or try a keyword search, such as Digital to Analog Converters
