AD9789BBC - Analog Devices

Description: DOCSIS 3.0 performance: 4 QAM carriers ACLR over full band (47 MHz to 1 GHz) −75 dBc @ fOUT = 200 MHz −72 dBc @ fOUT = 800 MHz (noise) −67 dBc @ fOUT = 800 MHz (harmonics) Unequalized MER = 42 dB On chip and bypassable 4 QAM encoders with SRRC filters, 16× to 512× interpolation, rate converters, and modulators Flexible data interface: 4, 8, 16, or 32 bits wide with parity Power: 1.6 W (IFS = 20 mA, fDAC = 2.4 GHz, LVDS interface) Direct to RF synthesis support with fS mix mode Built-in self-test

Download AD9789BBC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9789BBC - Analog Devices - PCB symbol
click to zoom
PCB Footprints

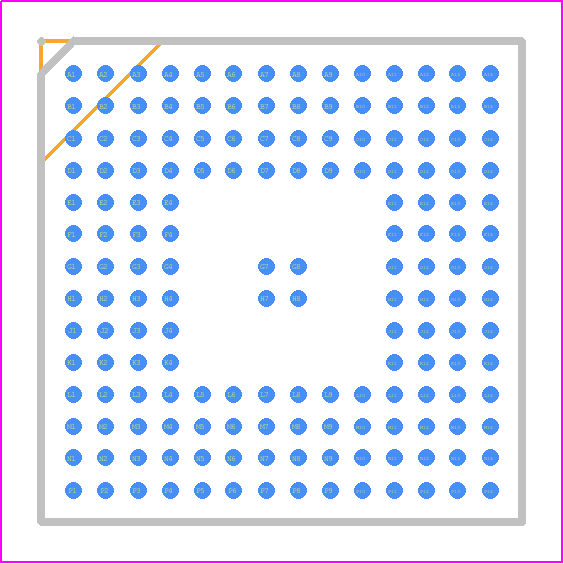

AD9789BBC - Analog Devices PCB footprint - BGA - BGA - 164-Ball Chip Scale Package Ball Grid Array (CSP_BGA)
click to zoom
3D Models
AD9789BBC - Analog Devices - 3D model - BGA - 164-Ball Chip Scale Package Ball Grid Array (CSP_BGA)
click to zoom

AD9789BBC Details

  • Manufacturer Part Number:

    AD9789BBC

  • Source Url Status Check Date:

    2013-05-01 14:56:32.328

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    CSP-164

  • Pin Count:

    164

  • Manufacturer Package Code:

    BC-164-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PBGA-B164

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    164

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA164,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Settling Time-Nom (tstl):

    0.013 µs

  • Supply Current-Max:

    556 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm
