AD9822JRSZRL - Analog Devices

Description: Analog Front End - AFE 14-Bit CCD/CIS Signal Processor

Download AD9822JRSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

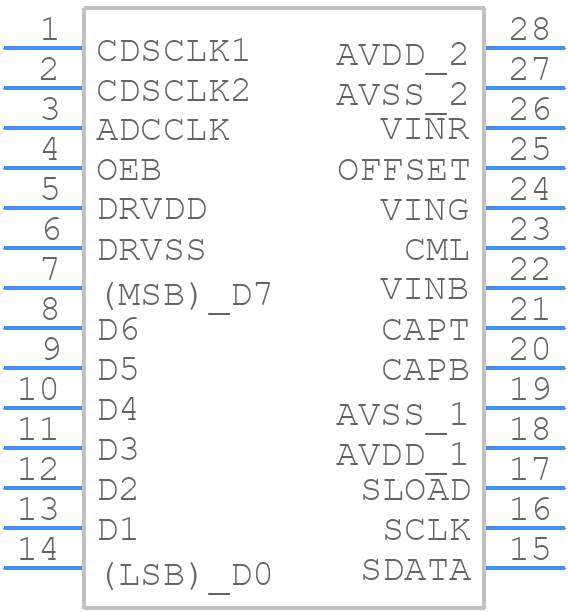

AD9822JRSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9822JRSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
AD9822JRSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

AD9822JRSZRL Details

  • Manufacturer Part Number:

    AD9822JRSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    5.33 MM, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9822JRSZRL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD9822JRSZRL requires a single 2.5V power supply. Ensure that the power supply is clean and well-regulated. The power sequencing requirement is to power up the VCC pin first, followed by the AVCC pin. The power-down sequence should be reversed.
  • The recommended clock frequency for the AD9822JRSZRL is 10MHz to 80MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. A clock signal with excessive jitter or noise can affect the performance of the ADC.
  • The analog input signal should be a low-impedance, differential signal with a common-mode voltage of 1.25V. The signal should be filtered to remove high-frequency noise and ensure that the signal amplitude is within the specified range of 2Vpp.
  • The AD9822JRSZRL uses a serial interface, and the recommended protocol is SPI-compatible. The interface requires a clock signal, a chip select signal, and a data output signal. The interface can operate in either master or slave mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9822JRSZRL Overview

Use the download button to access the AD9822JRSZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD982, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
