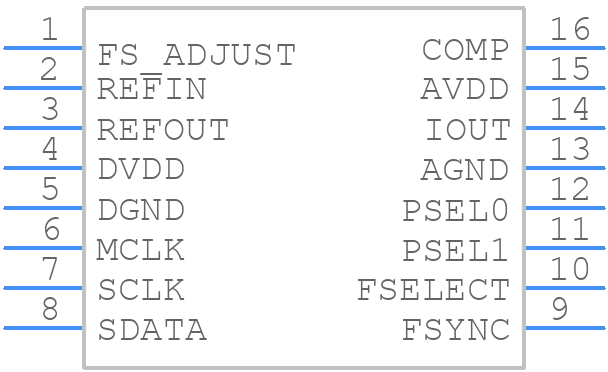

AD9832BRU - Analog Devices

AD9832BRU Frequently Asked Questions (FAQs)

• What is the maximum frequency range of the AD9832BRU?
  The AD9832BRU can generate frequencies up to 12.5 MHz, but the maximum frequency range depends on the clock frequency and the MCLK divider setting. Typically, it can generate frequencies up to 6.25 MHz with a 25 MHz clock input.
• How do I synchronize multiple AD9832BRU devices?
  To synchronize multiple AD9832BRU devices, you can use the SYNC pin to synchronize the internal clock dividers. You can also use an external clock source and connect it to the MCLK pin of each device.
• What is the phase noise performance of the AD9832BRU?
  The phase noise performance of the AD9832BRU is not explicitly specified in the datasheet, but it is typically around -80 dBc/Hz at 1 kHz offset from the carrier frequency. However, this can vary depending on the specific application and operating conditions.
• Can I use the AD9832BRU as a voltage-controlled oscillator (VCO)?
  Yes, the AD9832BRU can be used as a VCO by using the FREQ input pin to control the output frequency. However, the frequency tuning range and linearity may not be suitable for all VCO applications.
• How do I optimize the power consumption of the AD9832BRU?
  To optimize power consumption, you can reduce the clock frequency, use the power-down mode, and minimize the output load. You can also use the sleep mode to reduce power consumption when the device is not in use.
