AD9832BRUZ-REEL7 - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized 25MHz Direct Digital Synthesizer

Download AD9832BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

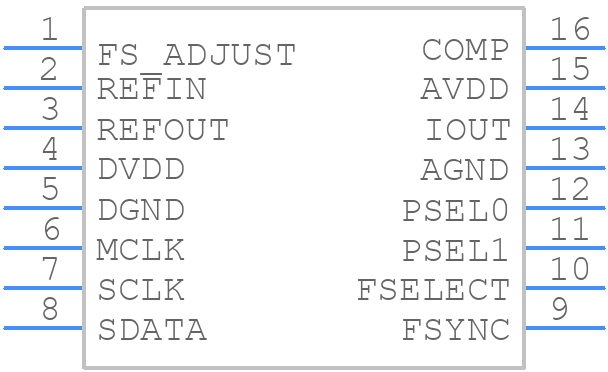

AD9832BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9832BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD9832BRUZ-REEL7
click to zoom
3D Models
AD9832BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - AD9832BRUZ-REEL7
click to zoom

AD9832BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD9832BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD9832BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the clock signal. This ensures that the internal bias voltage is established before the clock signal is applied.
  • To ensure a stable output frequency, make sure that the clock input is a stable, low-jitter signal, and that the device is operated within the recommended operating conditions. Additionally, ensure that the output frequency is within the specified range of 0 Hz to 12.5 MHz.
  • The maximum frequency deviation of the AD9832 is ±10% of the programmed frequency, due to internal oscillator tolerance and temperature effects.
  • No, the AD9832 is not designed to be used as a voltage-controlled oscillator (VCO). It is a direct digital synthesizer (DDS) that generates a frequency based on a digital input code, not a voltage input.
  • To synchronize multiple AD9832 devices, connect the clock inputs of each device together and ensure that they are driven by a common clock source. This will ensure that the devices are phase-locked and generate the same output frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9832BRUZ-REEL7 Overview

Use the download button to access the AD9832BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD983, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
