AD9845BJSTZ - Analog Devices

Description: AD9845BJSTZ, Video Processor 48-Pin LQFP

Download AD9845BJSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

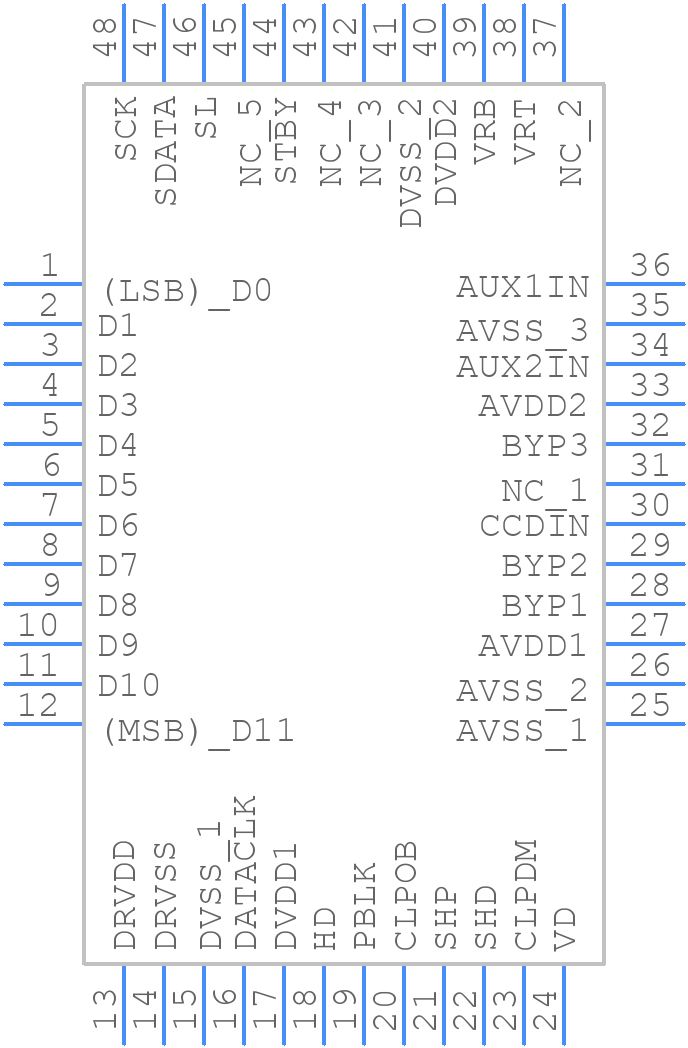

Symbol
AD9845BJSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9845BJSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)_2
click to zoom
3D Models
AD9845BJSTZ - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)_2
click to zoom

AD9845BJSTZ Details

  • Manufacturer Part Number:

    AD9845BJSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    1.40 MM HEIGHT, PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

AD9845BJSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the performance of the AD9845BJSTZ in terms of noise reduction, it is recommended to use a low-noise power supply, decouple the power supplies with capacitors, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, using a shielded enclosure and keeping the analog and digital circuits separate can also help reduce noise.
  • The AD9845BJSTZ can support clock frequencies up to 65 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AD9845BJSTZ has a programmable gain amplifier (PGA) that can be configured for different gain settings using the SPI interface. The gain settings can be programmed using the PGA gain control register (Address 0x10). The gain can be set to 1, 2, 4, or 8.
  • The SYNC pin on the AD9845BJSTZ is used to synchronize the conversion process with an external clock signal. This pin can be used to synchronize multiple AD9845BJSTZ devices or to synchronize the conversion process with an external event.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9845BJSTZ Overview

Use the download button to access the AD9845BJSTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD984, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
