AD9849AKSTZ - Analog Devices

Description: AD9849AKSTZ, Analogue Front End IC, 1-channel 12bit-, 30000ksps Serial-3 Wire, 48-Pin LQFP

Download AD9849AKSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

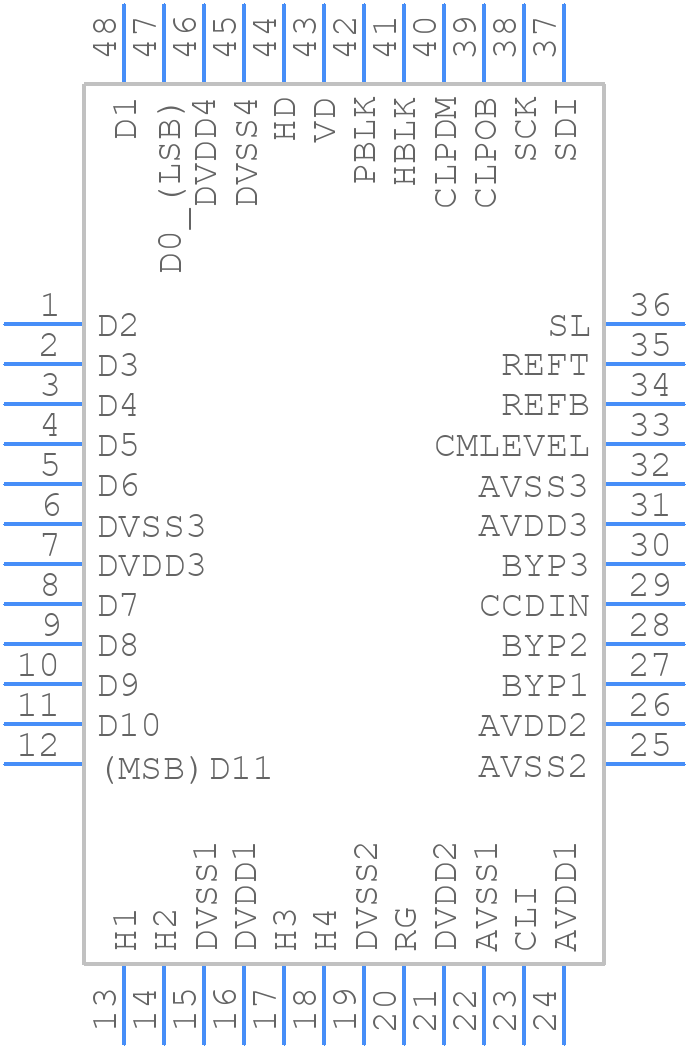

Symbol
AD9849AKSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9849AKSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)_2
click to zoom
3D Models
AD9849AKSTZ - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)_2
click to zoom

AD9849AKSTZ Details

  • Manufacturer Part Number:

    AD9849AKSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    1.40 MM HEIGHT, PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO REQUIRES 3V TO 5.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9849AKSTZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9849AKSTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the AD9849AKSTZ's performance, you should consider factors such as the input signal frequency, amplitude, and impedance, as well as the desired output data rate and resolution. You may need to adjust the device's gain, offset, and filtering to achieve the best results for your specific application.
  • The AD9849AKSTZ requires a single 3.3V power supply, and it's essential to ensure a clean and stable power source to prevent noise and errors. You should also consider the power sequencing and decoupling capacitors to ensure reliable operation.
  • The AD9849AKSTZ can be interfaced with a microcontroller or FPGA using a parallel or serial interface. Key considerations include the data transfer protocol, clock synchronization, and data formatting. You should also ensure that the interface is properly terminated and that the data transfer rate is within the device's specifications.
  • The AD9849AKSTZ has a maximum junction temperature of 150°C, and it's essential to ensure good thermal management to prevent overheating. You should consider the device's power dissipation, thermal resistance, and the PCB's thermal design to ensure reliable operation.
