Symbol

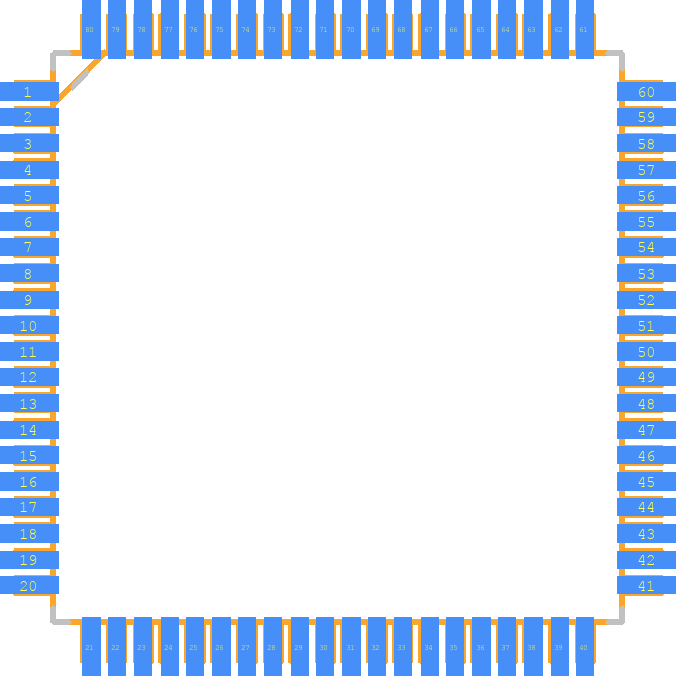

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9857ASTZ
- Part Number AD9857ASTZ
- Manufacturer Analog Devices
- Pin Count 80
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP65P1600X1600X160-80N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9857ASTZ Details
-
Manufacturer Part Number:
AD9857ASTZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Package Description:
LEAD FREE, MS-026-BEC, LQFP-80
-
Pin Count:
80
-
Manufacturer Package Code:
ST-80-2
-
Country Of Origin:
Mainland China
-
ECCN Code:
5A991.B
-
HTS Code:
8542.39.00.01
AD9857ASTZ Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the AD9857ASTZ is 1.4 GHz. However, the actual clock frequency used will depend on the specific application and the desired output frequency.
-
The AD9857ASTZ can be programmed using a 32-bit frequency tuning word (FTW) that is loaded into the device through the serial interface. The FTW is calculated based on the desired output frequency, the clock frequency, and the phase accumulator size.
-
The phase noise performance of the AD9857ASTZ is typically -120 dBc/Hz at 10 kHz offset from the carrier frequency. However, this can vary depending on the specific application and the quality of the clock source.
-
Yes, the AD9857ASTZ can be used to generate a modulated signal by applying a modulation signal to the device's modulation input. The modulation signal can be used to frequency-modulate, amplitude-modulate, or phase-modulate the output signal.
-
The power consumption of the AD9857ASTZ is typically 350 mW at 3.3 V supply voltage. However, this can vary depending on the specific application and the clock frequency used.
Trust Checks
System Verified
AD9857ASTZ Overview
Use the download button to access the AD9857ASTZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD985,
or try a keyword search, such as Other Telecom ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
